Introduction

Running a mission-critical website on a single server creates a significant risk, as routine maintenance or unexpected hardware failures can take your service offline instantly. This tutorial guides you through transforming a standalone web server into a resilient High Availability (HA) cluster using accessible open-source tools.

We will utilize Proxmox to clone your existing environment and deploy OPNSense with HAProxy to intelligently distribute traffic between multiple nodes. To handle dynamic content, we solve the challenge of file synchronization by implementing Syncthing, a decentralized peer-to-peer tool that keeps folders like WordPress uploads identical across servers in real-time.

We will configure Syncthing on headless Linux instances, tunnel securely to its GUI for management, and set up automated health monitoring using UptimeKuma. By the end, you will have a robust architecture that can survive individual server reboots without downtime, offering a simpler alternative to complex enterprise-grade distributed file systems.

1. Vaultwarden or Bitwarden?

• While Bitwarden offers a robust, enterprise-ready self-hosted option, it is resource-intensive. The official Bitwarden server relies on a complex stack of MSSQL (Microsoft SQL Server) and multiple .NET containers, often requiring 2GB+ of RAM just to idle.
• Vaultwarden is a lightweight rewrite of the Bitwarden API in Rust. It is fully compatible with official Bitwarden apps (browser extensions, mobile, desktop) but runs on a fraction of the resources (often <100MB RAM).
• Bitwarden offers a free option for individuals. If you have a family or an organization and want to share a collection of passwords, you would need to go on the paid tier. The advantages include convenience (no maintenance on your part) and no missing features.
• The obvious pitfall with Vaultwarden is that if you deploy it yourself, you will also need to handle the maintenance. We counter that by using docker containers that can be updated very easily. What takes more effort is to ensure your web and database clusters are up to date and secure as well, which is beyond the scope of this tutorial. In addition, if Bitwarden introduces some flashy new features, you may need to wait till the Rust devs update them for Vaultwarden.

Pre-requisites

• A web server (or two) on site 1 + 2 running nginx on Debian 12 or newer. Their set up is beyond the scope of this article - you can refer to my previous article on How to configure High Availability for a Web Server using Syncthing and HAProxy (on OPNSense).
• A Galera cluster (MySQL) deployed in HA on your two sites, ideally with a Galera witness on site 3 (all connected via WireGuard). Again, the set up is beyond the scope of this article - you can complete them using previous tutorials titled Deploy MariaDB Galera Cluster on Proxmox and Set up a Galera Witness on Hetzner VPS using Terraform + Ansible (AWX)
• OPNSense (or pfsense or similar) with an HAProxy module to act as a reverse proxy + virtual IP interface for our DB cluster on site 1 and 2. Previously, this was completed in a tutorial called OPNSense in HA with CARP with dual WANs.

Topology

• Site 1 (Main) - all connected to a UPS managed from an RPI

  • OPNSense in HA (192.168.8.254) - CARP 0 - see this guide to set it up.
    • OPNSense1 (192.168.8.1) - Proxmox host 1
    • OPNSense2 (192.168.8.2) - Proxmox host 2
    • Site-to-site VPN WireGuard) with the interface of 10.10.10.1/24
  • Web servers in HA - reachable via a shared back-end pool in HAProxy within OPNSense
    • web1 (192.168.8.9) - Proxmox host 1
      • Syncthing from web1 to web2 & web1 to web3 - to sync user data in near real-time
      • Connected to a local Gitea server - to update app data on demand
    • web2 (192.168.8.10) - Proxmox host 2
      • Syncthing from web2 to web1 & web2 to web3 - to sync user data in near real-time
      • Connected to a local Gitea server - to update app data on demand
  • Database Cluster - MariaDB Galera cluster - reachable on virtual IP 192.168.8.70 configured in OPNSense
    • galera1-2 (192.168.8.71 + 72) - Proxmox host 1
    • galera3-4 (192.168.8.73 + 74) - Proxmox host 2
    • galera-template - a pre-prepared LXC template ready for easy deployment in case a replacement is needed (can be automated with AWX for deployment)
  • Gitea LXC (192.168.8.21) - to sync app data and deployment scripts + config.xml for each OPNSense host.
  • Uptimekuma1 (192.168.8.60) - to monitor all Site 1 hosts’ uptime inc. services like Syncthing
  • RPI (192.168.8.16)
    • Corosync for HA for the Proxmox cluster) - ensure a host is reachable if one is down
    • Proxmox Backup Server with an added drive - for Site 1 + 2.
    • APCupsd with scripts for smooth graceful shutdown of Proxmox hosts - see this tutorial for more information.
    • Can act as a local Galera witness before Site 3 is set up.

• Site 2 (Online Backup)

  • OPNSense3 (192.168.6.1) - Proxmox host 3
    • Site-to-site VPN (WireGuard) with the interface of 10.10.10.2/24
  • Web3 (192.168.6.10) - Proxmox host 3
    • Syncthing from web3 to web1 & web3 to web2 - to sync user data in near real-time
    • Connected to Site 1’s Gitea server - to update app data on demand
  • Galera4+5 (192.168.6.75 + 76) - Proxmox host 3
  • Uptimekuma2 (192.168.6.60) - monitors Site 2 services inc. web2’s Syncthing jobs.

• Site 3 (Witness)

  • Galera witness VPS deployed automatically via AWX in Hetzner - see this tutorial on how to achieve that.
    • Site-to-site VPN (WireGuard) with the interface of 10.10.10.3/24
    • Garb - daemon that does not hold data and provides HA if one site is down (quorum voting as +1)
    • Uptimekuma3 - monitors uptime for websites that are provided by either site (such as bachelor-tech.com)

Software Versions at the time of write-up

For the purpose of reproducibility, as a side note, you can find the versions that I worked with:

• OPNSense:
  • Core Version: 25.7.10 (commit: c2f076f30)
  • os-haproxy plugin: 4.6_1
  • os-acme plugin: 4.11
  • os-ddclient plugin: 1.28
  • os-git-backup: 1.1_1
• Vaultwarden Docker Image: 1.35.2
• Web servers
  • OS: Debian 12 (Bookworm, kernel 6.1.0-26-amd64)
  • nginx: 1.28.0
  • Docker Engine (client + server): 29.1.3
  • Syncthing: 2.0.12 (Hafnium Hornet)
  • Fail2ban (server + client): 1.0.2
• Galera cluster:
  • OS: Debian 13 (Trixie, kernel 6.17.2-2-pve)
  • Maria DB Server: 11.8.3
  • Maria DB Client: 15.2
• UptimeKuma: 2.0.0-beta.4

Gotchas with Vaultwarden & Syncthing

There are two specific limitations to be aware of during an Active-Active setup for Vaultwarden:

• Token Signing Keys: Users will get logged out if they hit web1 but their token was signed by web2 or web3 using a different key. You must ensure the RSA key files in the data directory are identical across all nodes.
  • We will handle that in this guide by using Syncthing to distribute the RSA key between the web nodes.
• WebSockets: Vaultwarden does not currently have a "message bus" (like Redis) to broadcast WebSocket events between nodes. If a user updates a password on web1, a device connected to web2 or web3 won't get the live update immediately. It will sync the next time the user manually refreshes or performs an action. This is a minor inconvenience but acceptable for most.
• Vaultwarden tables utilize Primary Keys, which is good (Galera requires them). However, ensure your Galera nodes are not running in ENFORCING mode for wsrep_drupal_282555_workaround or strict checking that might block INSERT statements if they momentarily lack a PK. Most likely, this will not be an issue.

---

2. Create a Vaultwarden DB + Install Dependencies

Now since the topology and the specifics of Vaultwarden have been covered, let us move forward with the installation and setup. We will be setting it up on Debian 13 (Trixie) - other versions will likely work in a very similar fashion.

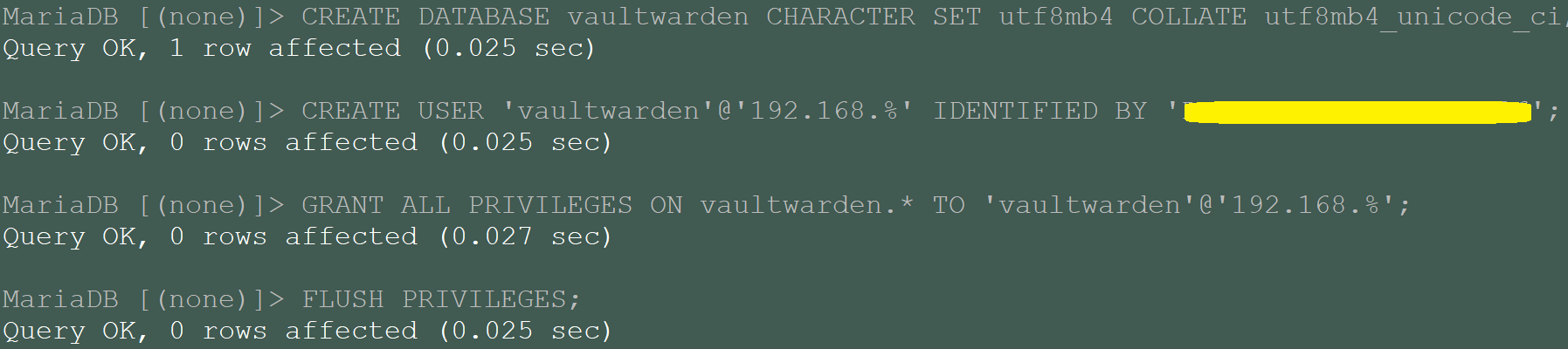

Create a DB on your cluster

• SSH into any of the Galera cluster node (as they will sync) and run the following:
  • Replace the ‘your_secure_password’ string with your own! It is recommended to avoid using special characters for compatibility - the length is what matters the most here! If you do use special chars, you will need to escape them properly later on in the docker-compose.yml file for Vaultwarden.
  • If you are not sure about the subnet required for the user’s privileges, you can just use ‘%’ instead of specifying the IP range.

mysql -u root -p

CREATE DATABASE vaultwarden CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci;
CREATE USER 'vaultwarden'@'192.168.%' IDENTIFIED BY 'your_secure_password';
GRANT ALL PRIVILEGES ON vaultwarden.* TO 'vaultwarden'@'192.168.%';
FLUSH PRIVILEGES;

Install dependencies + Vaultwarden itself

• Take a snapshot of each web server before you start the process!
• Install the following on EACH web node you have:

# Update and install basic tools
sudo apt update && sudo apt install -y ca-certificates curl

# Add Docker's official GPG key
sudo install -m 0755 -d /etc/apt/keyrings
sudo curl -fsSL https://download.docker.com/linux/debian/gpg -o /etc/apt/keyrings/docker.asc
sudo chmod a+r /etc/apt/keyrings/docker.asc

# Add the repository
echo \
  "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.asc] https://download.docker.com/linux/debian \
  $(. /etc/os-release && echo "$VERSION_CODENAME") stable" | \
  sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

# Refresh apt & install Docker
sudo apt update
sudo apt install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

# Enable Docker Systemd service (so containers start on boot)
sudo systemctl enable --now docker

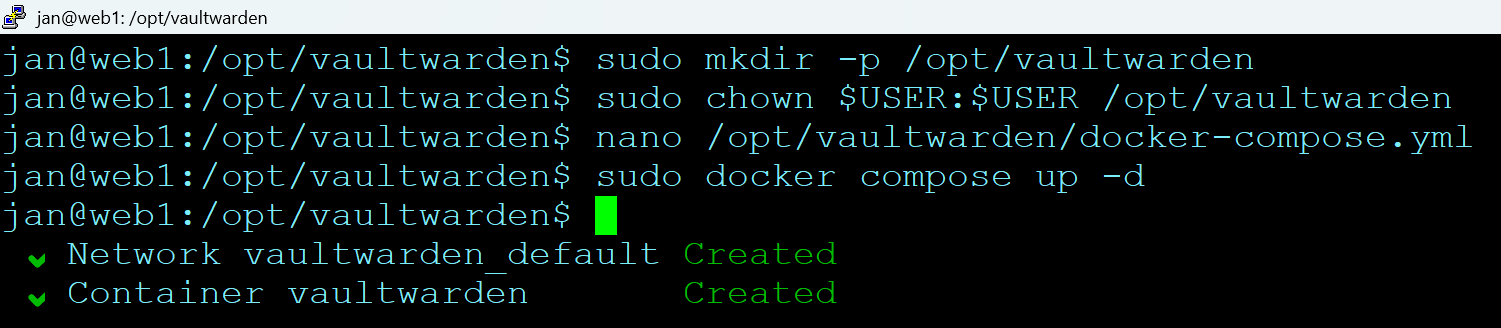

• Create a user, folder and a Docker Compose file:

# Create the directory
sudo mkdir -p /opt/vaultwarden

# Set permissions so your current user can edit files there
sudo chown $USER:$USER /opt/vaultwarden
cd /opt/vaultwarden

# Create the Compose file
nano /opt/vaultwarden/docker-compose.yml

• The compose.yml file:
  • Note that in my setup, I have a virtual IP set up using OPNSense that I point the web application onto. If you do not have it set up yet, you can check out this part of the tutorial titled Virtual IP Set Up on OPNSense (you will then need a service such as HAProxy listening on that IP to receive and forward requests to your Galera cluster nodes).

services:
  vaultwarden:
    image: vaultwarden/server:latest
    container_name: vaultwarden
    restart: always
    ports:
      - "127.0.0.1:8000:80"
    environment:
      - DATABASE_URL=mysql://vaultwarden:[email protected]/vaultwarden
      - DOMAIN=https://vault.yourdomain.com
      - SIGNUPS_ALLOWED=false
      - INVITATIONS_ALLOWED=true
      - IP_HEADER=X-Real-IP
      - LOG_LEVEL=info
      - EXTENDED_LOGGING=true
      # --- SMTP Email Settings ---
      - SMTP_HOST=smtp.gmail.com  # Replace with your provider's host
      - [email protected]
      - SMTP_FROM_NAME=Vaultwarden
      - SMTP_SECURITY=starttls    # Options: starttls, force_tls, off
      - SMTP_PORT=587             # Usually 587 for starttls, 465 for force_tls
      - [email protected]
      - SMTP_PASSWORD=your_app_password
      - SMTP_AUTH_MECHANISM="Plain" # This is safe if used with TLS
    logging:
      driver: "journald"
      options:
        tag: "{{.Name}}"
    volumes:
      # This creates a 'vw-data' sub-folder as a form of persistent storage
      - ./vw-data:/data

• Run it:

cd /opt/vaultwarden

# Sudo is needed to pull the image
sudo docker compose up -d

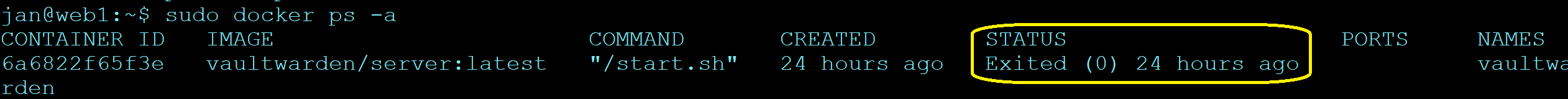

• You can check its status after creation by running sudo docker container ps -a .

💡 Note

Once your docker-compose.yml file is launched and you make changes to it, it is best to then re-create the container by running sudo docker compose up -d --force-recreate

Configure Nginx with Vaultwarden

• Depending on how your nginx instance is already configured, your setup may look something like this:
  • Ensure the path + port number match!
  • SSL offloading is handled by HAProxy/OPNSense, so Nginx here listens on 8081. Ensure HAProxy passes the X-Forwarded-Proto header so Vaultwarden knows it's secure.

sudo nano /etc/nginx/conf.d/vaultwarden.conf

server {
    # We listen on 80 because HAProxy handles the SSL/HTTPS before it gets here.
    listen 8081;

    # Replace with your actual FQDN
    server_name vault.yourdomain.com;

        # Replace with OPNSense's actual IP to ensure fail2ban blocks the correct users:
    set_real_ip_from 192.168.0.0/16;
    real_ip_header X-Forwarded-For;
    real_ip_recursive on;

    # Allow large attachments (optional, but good for saving PDFs/Images in vault)
    client_max_body_size 128M;

    location / {
        proxy_pass http://127.0.0.1:8000;

        # WebSocket support (used by /notifications/hub)
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";

        # Pass headers so Vaultwarden knows the real IP of the user, not just "127.0.0.1"
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }

• To clarify the ports used (these remain internal and do not need firewall rules):
  • Port 8081: What nginx listens on to receive traffic from HAProxy
  • Port 8000: The Vaultwarden application (web interface, API, and WebSockets)

💡 Note: In Vaultwarden versions prior to 1.29.0, WebSockets required a separate port (3012). Modern versions serve WebSockets from the main application port, simplifying the configuration.

• Check nginx config and reload it:

# Confirm there is no typo in the syntax before reloading it
sudo nginx -t

# Reload nginx for the changes to take an effect
sudo systemctl reload nginx

• Remember to complete the above on all web server nodes, although you may wish to do the first one first and have HAProxy set up just with that one node until you got it working fully.

---

3. Configure OPNSense + HAProxy for Vaultwarden

• For true High Availability (ideally on each site or at least on the main site), you should run your OPNSense in a master-backup configuration running on separate hardware on the same site.
• You would need to open a port for HTTPS communication and since your OPNSense HA relies on having the web interface running on port 443, you will need to open another port on HAProxy to receive web traffic on (I use port 4443 that the ISP-provided router changes from 443 to 4443). See here for more details on which ports to open for web traffic to work on OPNSense, followed up by NAT rules.
• Create a DNS record for your vault.yourdomain.tld record pointing to the public IP of your OPNSense - you can follow these steps to set up dynamic DNS with Cloudflare.
  • If you prefer a more secure set up, you do not actually need to expose a public DNS record, you can simply set one up on your network using tools such as Unbound DNS.
• Before setting up HAProxy, you should also set up an SSL certificate using the ACME plugin in OPNSense.

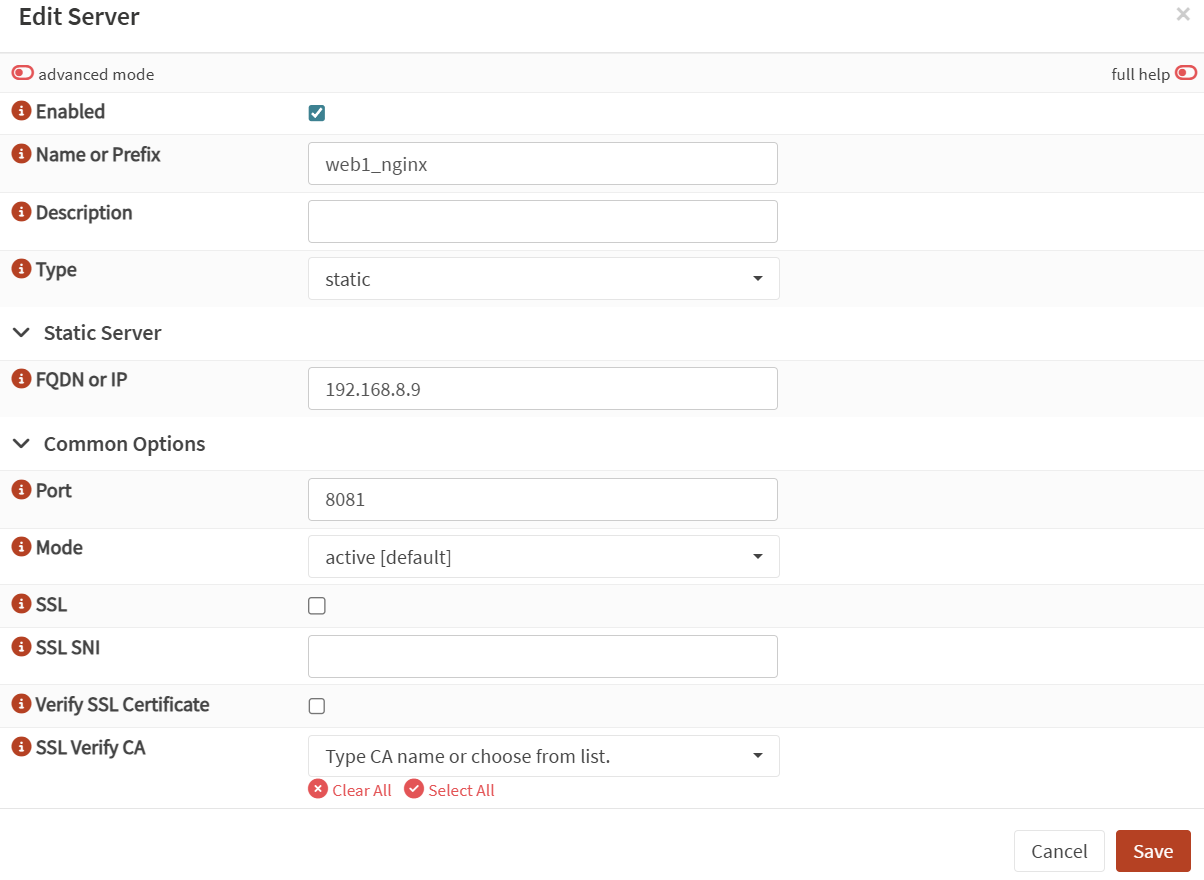

Add your ‘real’ hosts

In case you do not have it set up yet, apart from defining your web hosts (under the ‘Real Servers’ tab) with the local port (I’m using 8081), we should check the health of each web host.

• In OPNSense, go to Services → HAProxy → Settings. Then move to the other menu and click on Real Servers → Real Servers. Add a new one for each of your web servers:
  • Name: web1_nginx
  • Type: static
  • IP: your actual IP
  • Port: your chosen port configured on nginx, e.g. 8081
  • No SSL config here!

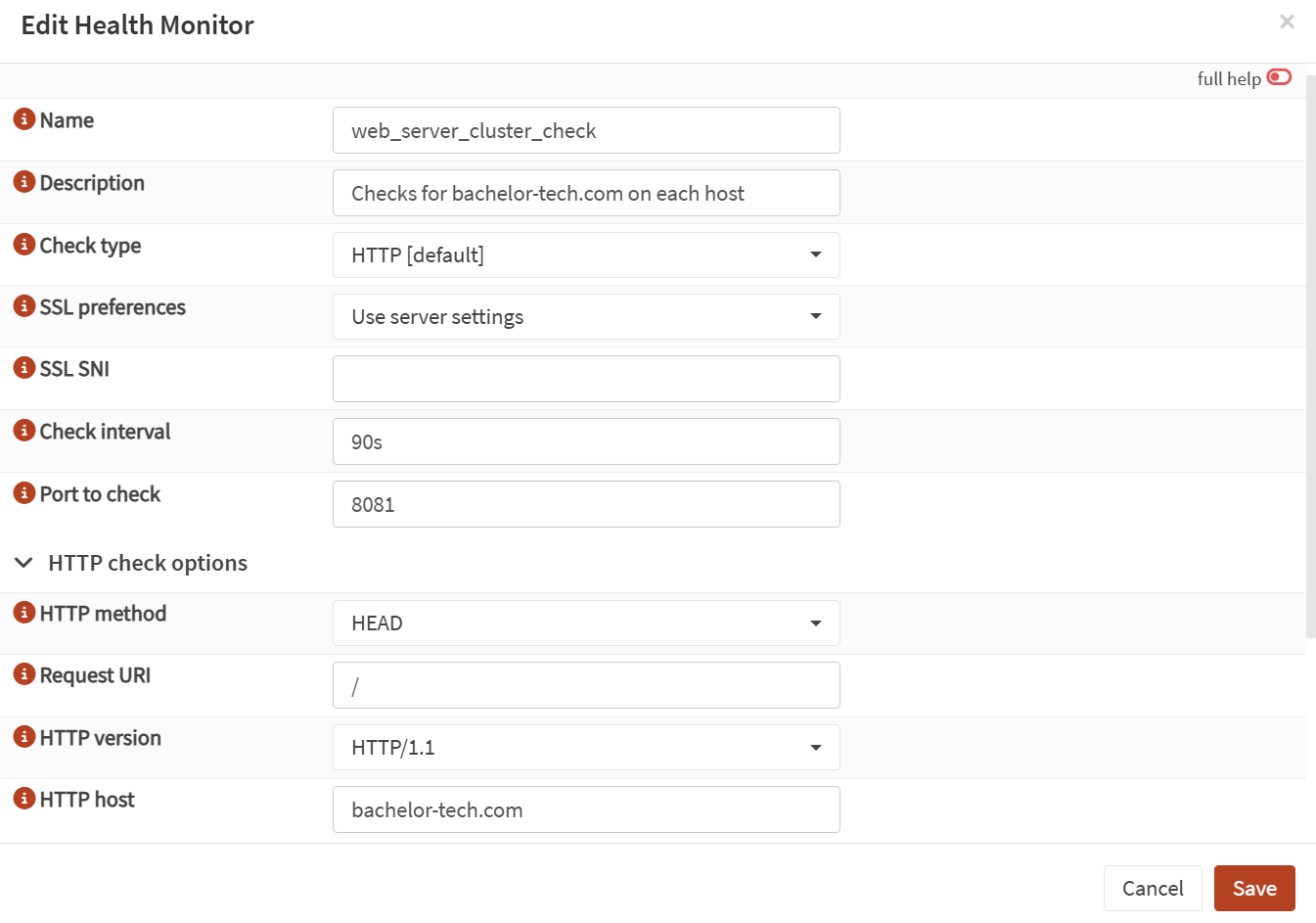

Set up a health monitor

We should also ensure that there is a health check in place for the web servers.

• Go to Rules & Checks → Health Monitors. Add a new monitor:
  • Name: web_server_cluster_check (or whatever you prefer)
  • Check type: HTTP (default)
  • SSL preferences: use server settings (default)
  • Check interval: 15-90s (you may get some false positives if too aggressive)
  • Port to check: 8081
  • HTTP method: HEAD
  • Request URI: /
  • HTTP version: HTTP/1.1
  • HTTP host: yourdomain.tld

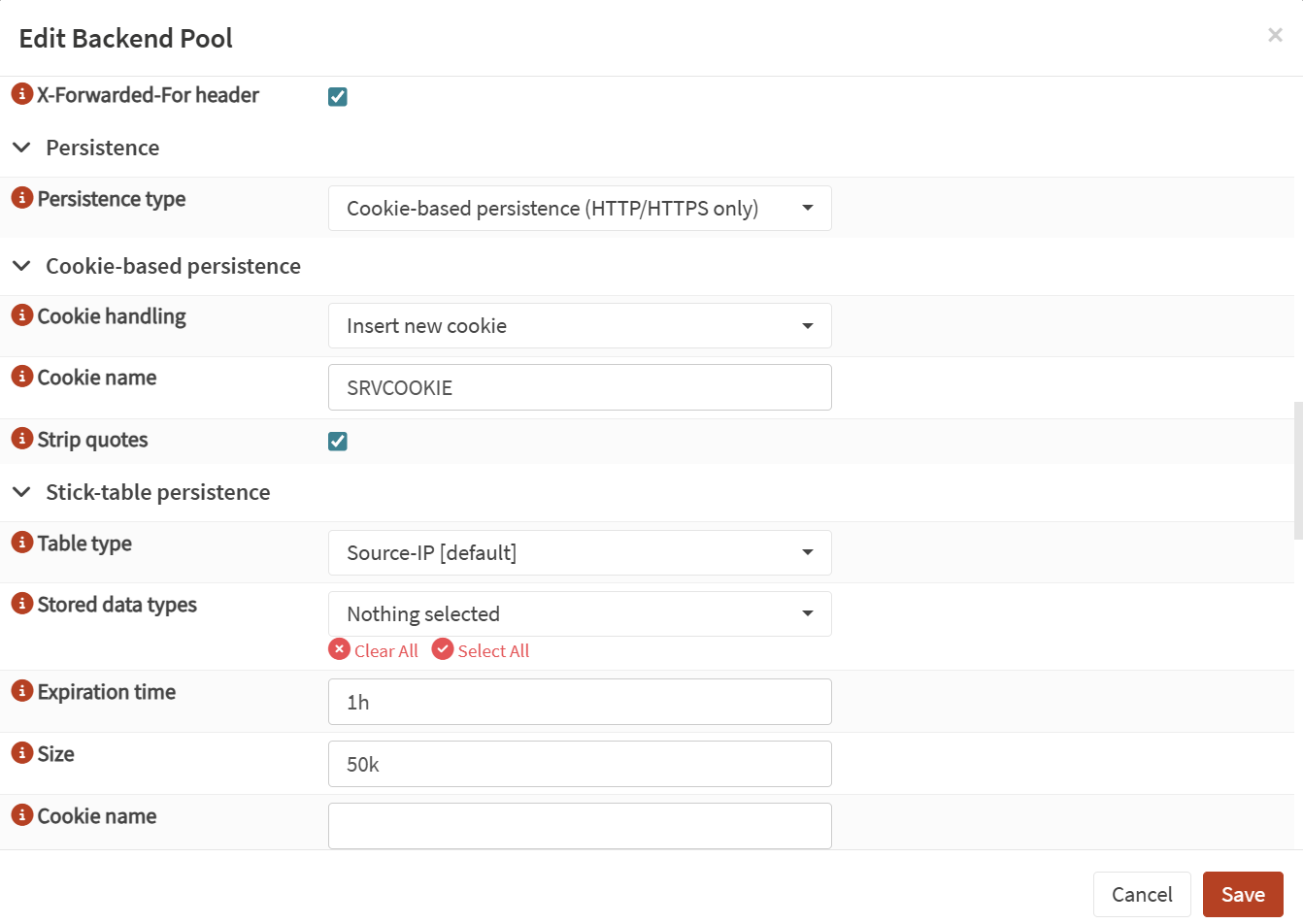

Configure your back-end pool

You may already have a back-end pool configured for your existing web servers, yet we will need to create another pool with the same real hosts in it, since different parameters will need to be set up for Vaultwarden.

💡 Note

The challenge with the default session rate period is that it is typically about 10 seconds long as well as no pass-through option is defined, which would result in the client having to re-establish connection with the server (users would see having a ‘Connecting…’ spinning wheel appear regularly). While for example PHP-based applications receive a payload and close the connection after responding, for web sockets, we want the session to remain active.

• Create a new back-end pool as follows (enable the advanced options):
  • Name: backend_vaultwarden_nginx
  • Mode: HTTP (Layer 7)
  • Balancing Algorithm: Round Robin
  • Random Draws: 2 (entirely up to you)
  • Proxy Protocol: none
  • Servers: add your ‘real’ servers here
  • …
  • Enable health checking: Ticked
  • Health monitor: web_server_cluster_check (previously defined in the health check section)
  • Proxy Protocol: none
  • Servers: add your web servers
  • …
  • X-Forwarded-For header: Ticked
  • Persistence Type: Cookie-based persistence
  • Cookie Handling: Insert new cookie
  • Cookie name: SRVCOOKIE (or another name as you desire)
  • Strip Quotes: Ticked (Default)
  • Expiration Time: 1h (match your tunnel timeout)
  • …
  • Connection Timeout: 5s (fail-over fast if the server is not responding)
  • Check Timeout: 5s (fail fast if health check fails)
  • Server Timeout: 3600s (allows the server to keep the pipe open)
  • Retries: 3 (default)
  • Option pass-through: timeout tunnel 3600s (tells HAProxy that it is a tunnel)
  • You can leave the rest as default unless you have other specifics in your setup.

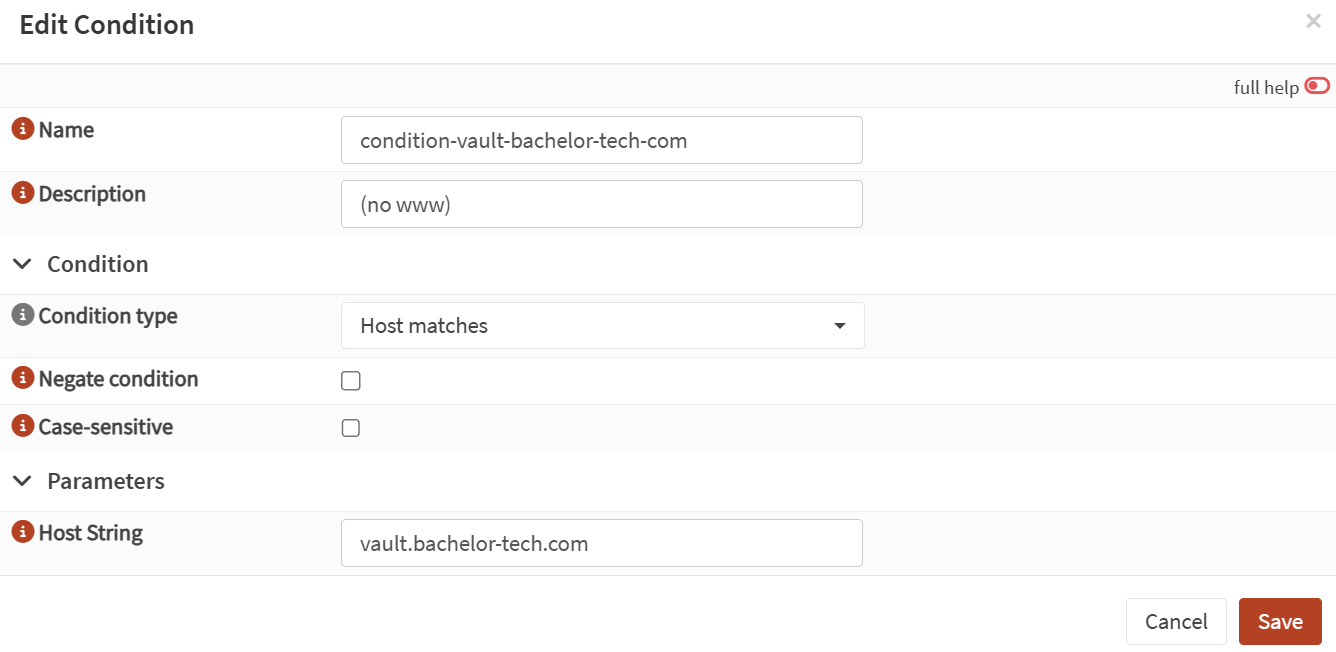

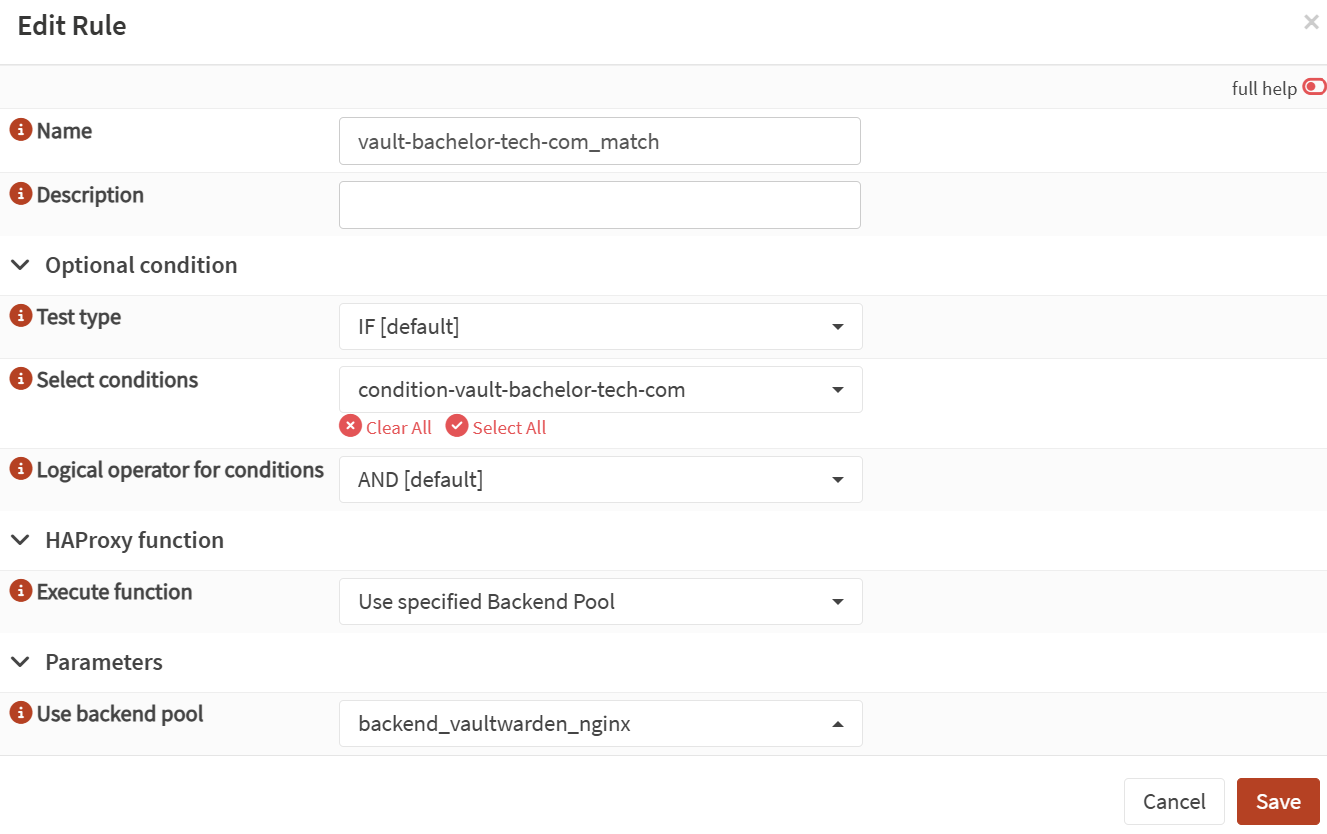

Configure a condition and a rule on HAProxy to listen to

• While still under HAProxy’s settings, go to Rules & Checks → Conditions and add a new condition:
  • Name: condition-vault-your-domain-tld
  • Condition type: Host matches
  • Host string: vault.yourdomain.tld

• And then still under Rules & Checks, go to Rules and add a new rule:
  • Name: vault-your-domain-tld_match (do not use spaces)
  • Test type: IF
  • Select conditions: condition-your-domain-tld (find your own)
  • Execute function: Use specified Backend Pool
  • Use backend pool: backend_vaultwarden_nginx (as defined previously)

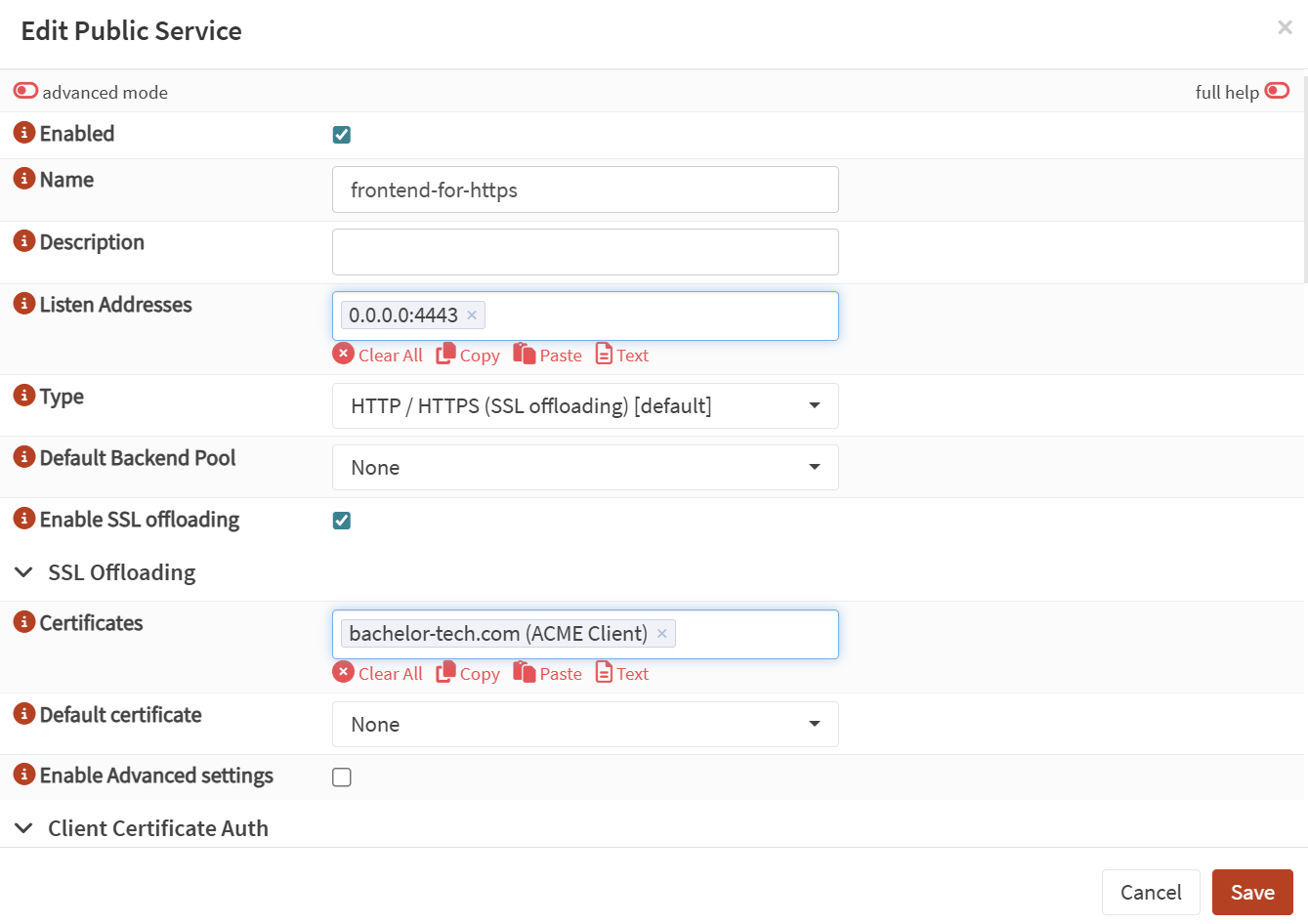

Set up your public (front-end) service

Go to Virtual Services → Public Services. If you already have one defined for HTTPS, then simply add the rule at the end, test & apply the syntax and you are done.

• If you have not set up HTTPS, then create a new one. The key here is to firstly have firewall rules set up to forward traffic to ‘This host’ on a port that HAProxy is listening to (must be different from the web interface that you use to access OPNSense!) and then in the ‘Public Service’ window, tick the ‘SSL offloading’ box to ensure that traffic is decrypted on your LAN. You would need to use the ACME certificate created earlier.

💡 Note

Ensure that you follow these steps on all of your sites to have the same config and can thus expect consistent behavior.

---

4. Troubleshoot Vaultwarden Docker/Web UI service

Let’s try accessing the web UI. Try accessing the Vaultwarden interface on https://vault.yourdomain.com .

Troubleshooting web UI reachability

In case the web UI is not coming up, we need to determine where the traffic got stuck. Here are the layers:

• DNS - e.g. CloudFlare - is your DNS record set up? Does it point to the correct IP address?
• OPNSense - do you have a firewall + NAT rule set up for forwarding traffic to a port that HAPRoxy is listening on?
• HAProxy - is your public (front-end) service on and listening on the desired port? Have you attached your SSL certificate for decrypting traffic? Is your back-end pool forwarding traffic to the right host? Is your ‘real’ host configure on the right port?
• Nginx on the VM - is nginx on and listening on the right port? Is the syntax of your virtual host for forwarding ok?
• Docker - is the docker instance up? What do the logs say?
• Galera DB Cluster - is it reachable for the web servers? Is the virtual IP operational? Is the DB up, esp. if you are reaching it on a virtual IP via OPNSense / pfSense?

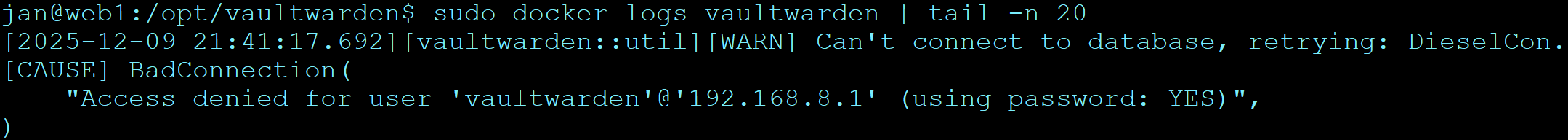

Example issue no.1 - Web server not accepted by the DB server

The example below shows that the Docker instance is running but spent the last two hours in a crash loop due to incorrect DB details:

• You may notice the IP 192.168.8.1 that points to the OPNSense host from which it is forwarded. This is because the Galera cluster is reachable on a virtual IP (192.168.8.70) provided by OPNSense. Such behavior is normal and expected.
• The main issue that I simulated here was that the user was defined for the wrong subnet - after dropping the user and re-creating it with the correct GRANT privileges fixed the issue.

Example issue no.2 - No Docker container running

Let’s say you set up just one web server VM and were able to reach the web UI and then later, it stopped loading. You may wish you double check that the docker container is still up.

sudo docker container ps -a

• To fix it, go to the folder where your container is located and start it. Ensure that you set up Docker to start on boot.

cd /opt/vaultwarden
sudo docker compose up -d
sudo systemctl enable docker

Example issue no.3 - "401 Unauthorized" loops

If you log in successfully but are immediately logged out when refreshing or performing an action, your nodes likely have different signing keys.

• The Cause: Vaultwarden generates RSA key pair files in /data on first startup. If web1 generated its own keys and web2 generated different ones, a login token signed by web1 will be rejected by web2.
• The Fix: Ensure Syncthing is successfully syncing the rsa_key.pem, rsa_key.pub.pem, and rsa_key.der files. You may need to manually copy the keys from the "primary" node to the others once to establish a baseline, then let Syncthing handle future updates.

First login

• Your first step in the Web UI would be to create your account.
• Since we set SIGNUPS_ALLOWED=false in the config, you will need to temporarily change that to true in docker-compose.yml, run docker compose up -d to apply, create your accounts, and then flip it back to false and restart again. This is intentional as a matter of exercising how you can easily tweak settings with Docker Compose, esp. when applying updates in the future.

---

5. Set up Syncthing for Vaultwarden data sync

To ensure that the uploaded data stay consistent across multiple web servers, we will employ Syncthing, which I already use on my web servers. If you would like some help with deploying it, check out my previous tutorial on How to Configure HA for Web Servers.

• The permissions depend on which user runs the Syncthing service. In my case, this is www-data. We will need to ensure that this user has access to Docker for monitoring purposes:

# Stop the container briefly to ensure the folder is free:
cd /opt/vaultwarden
sudo docker compose down

# Grant the 'www-data' user full Read/Write access to the docker volume
# using ACLs (Access Control Lists). This persists even if Docker recreates files.
sudo setfacl -R -m u:www-data:rwx /opt/vaultwarden/vw-data
sudo setfacl -d -m u:www-data:rwx /opt/vaultwarden/vw-data

# Start the container again (in a detached mode to free up the shell):
sudo docker compose up -d

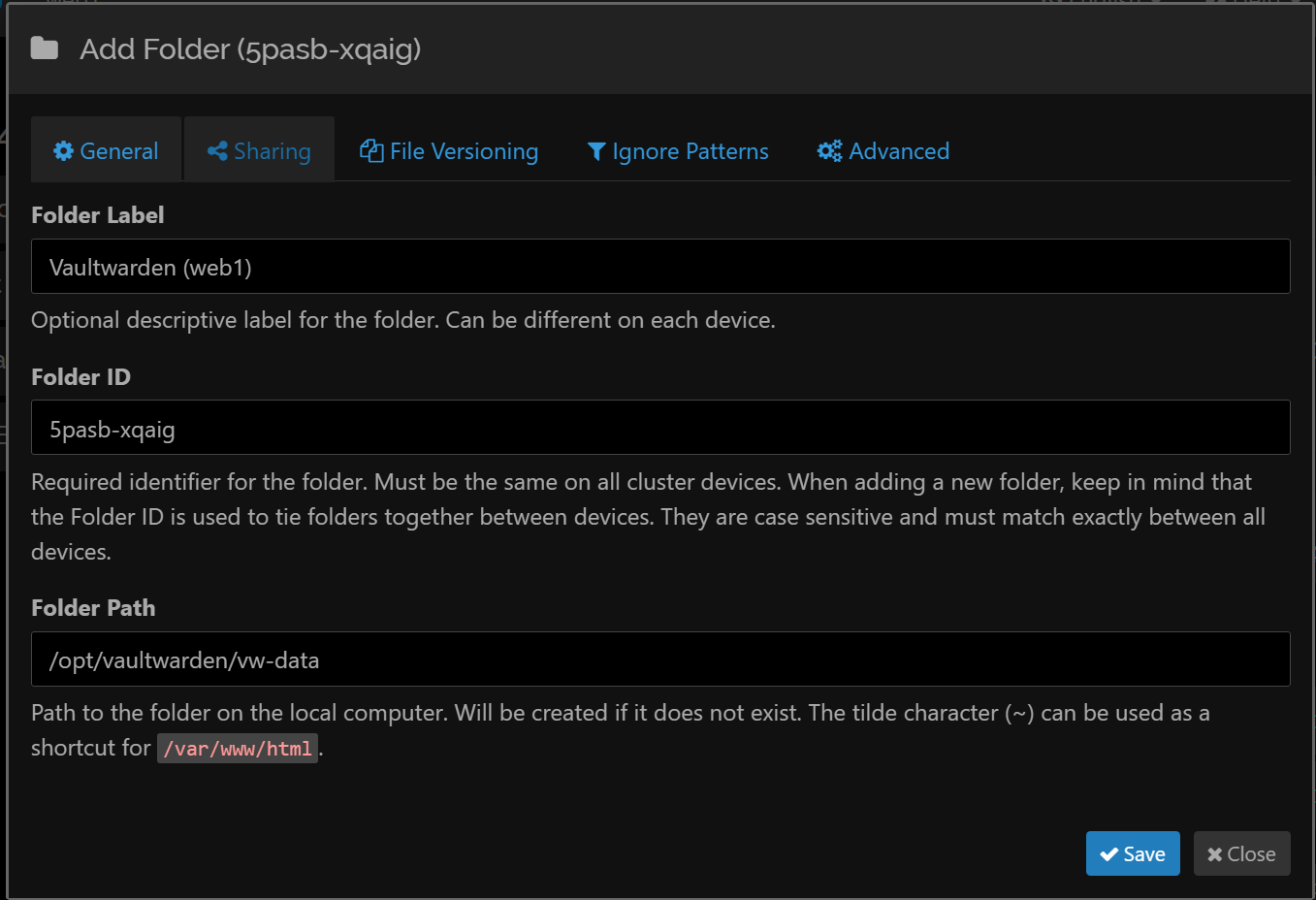

• Assuming you have Syncthing already deployed, add a new folder on web1:
  • General tab:
    • Label: Vaultwarden (web1)
    • Path: /opt/vaultwarden/vw-data
  • Sharing tab → if you already have your other Syncthing web servers defined, then tick the boxes.
  • File versioning tab → It is recommended to set up ‘Trash can versioning’ for 30 days+.

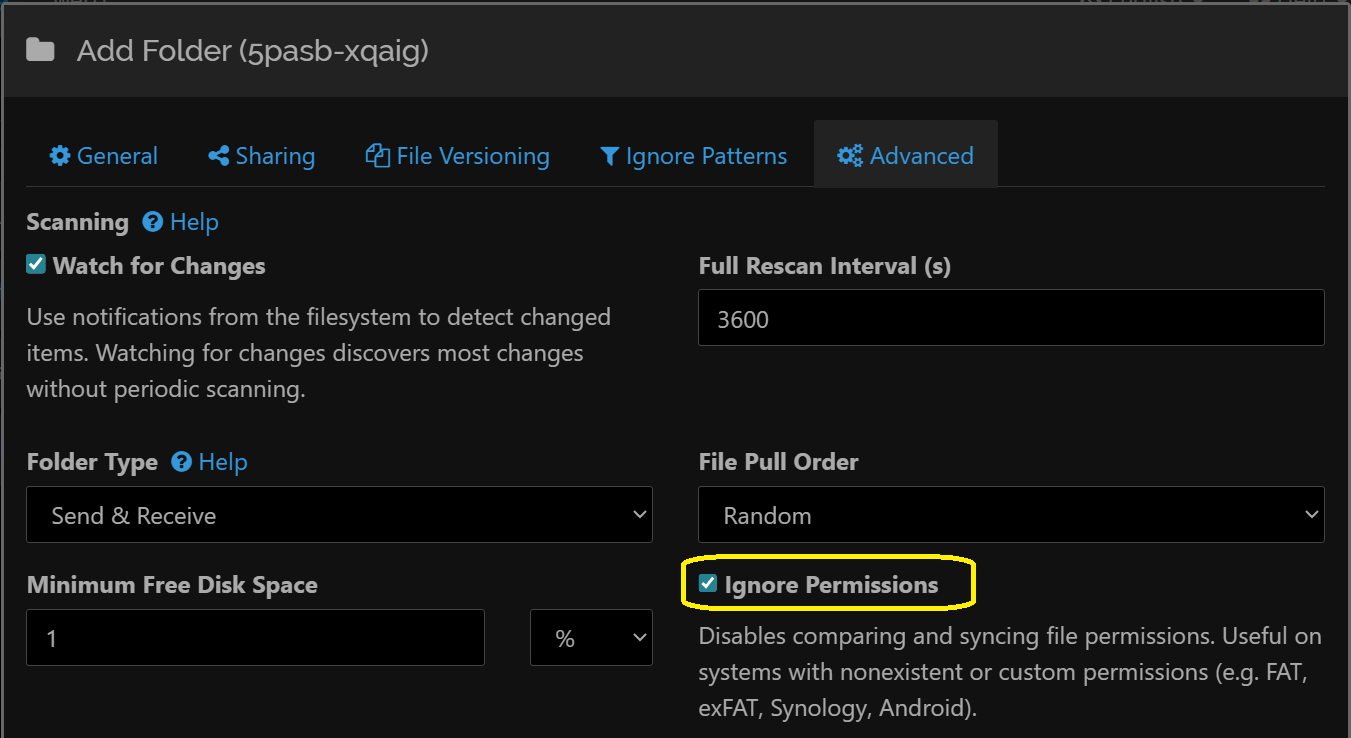

  • Skip to the Advanced tab → Check [x] Ignore Permissions (Docker manages the ownership, Syncthing just moves the data bits).

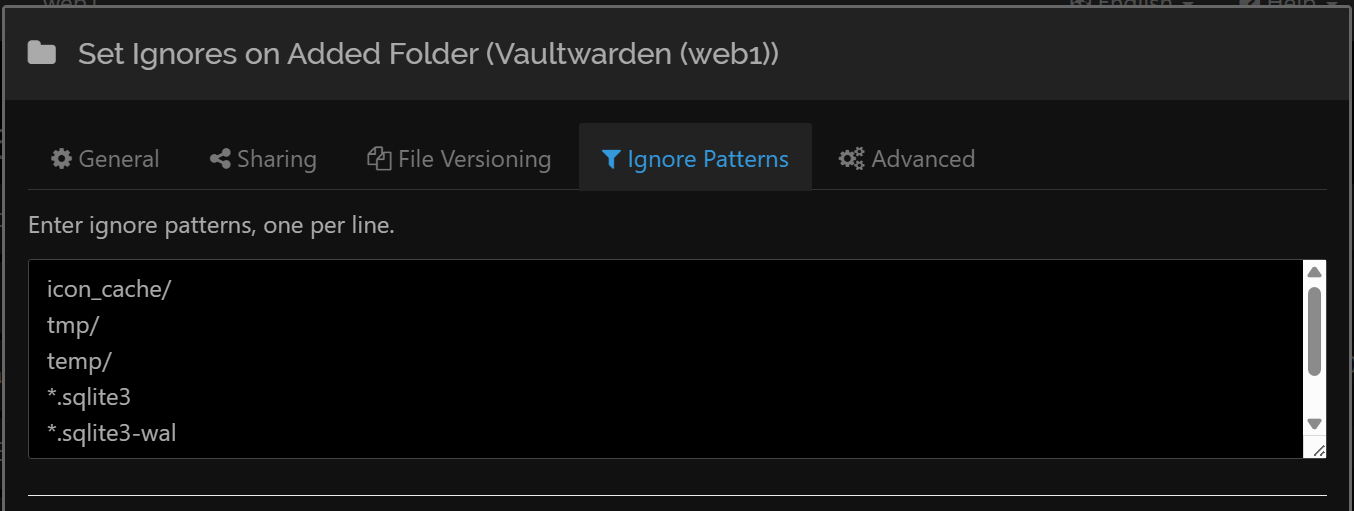

  • Go back to the Ignore Patterns tab: (tick the box and once you complete the other tabs and go forward, copy paste this list):

icon_cache/
tmp/
temp/
*.sqlite3
*.sqlite3-wal
*.sqlite3-shm
*.log

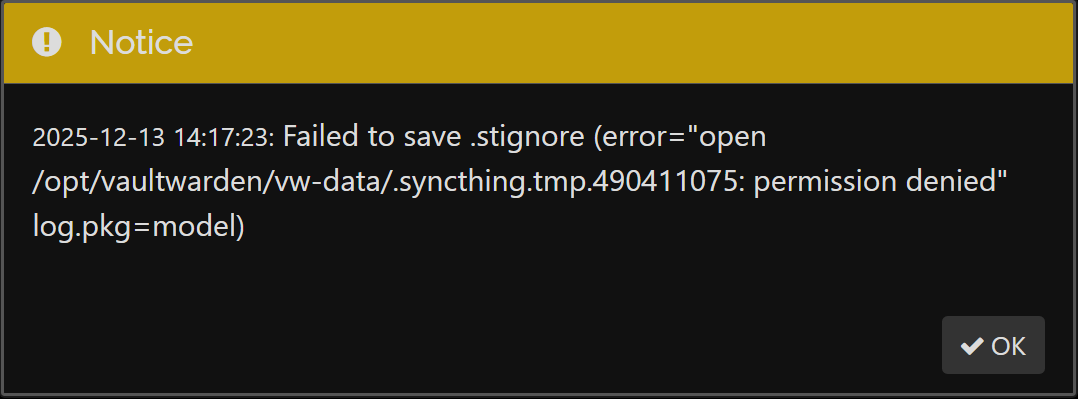

Troubleshooting Syncthing folder addition

• In case you add the sync job and immediately get a permission error like the one below, it means your permissions on the /opt/vaultwarden folder are not correct:

• While in my case, the user is www-data, in your case, it is likely different. How can you find out? Let’s take a look:

 # List all running processes, filter 'syncthing' and filter out the command itself:
 sudo ps aux | grep syncthing | grep -v grep

• Then adjust the ‘sudo setfacl -R’ and ‘sudo setfacl -d’ commands above accordingly.
• For additional troubleshooting scenarios, you can check my previous guide for Syncthing that includes data loss situations and recovery options.

Add Syncthing on other web nodes

• SSH into your other web server nodes and set up the file permissions accordingly as we have done at the beginning of this Step.

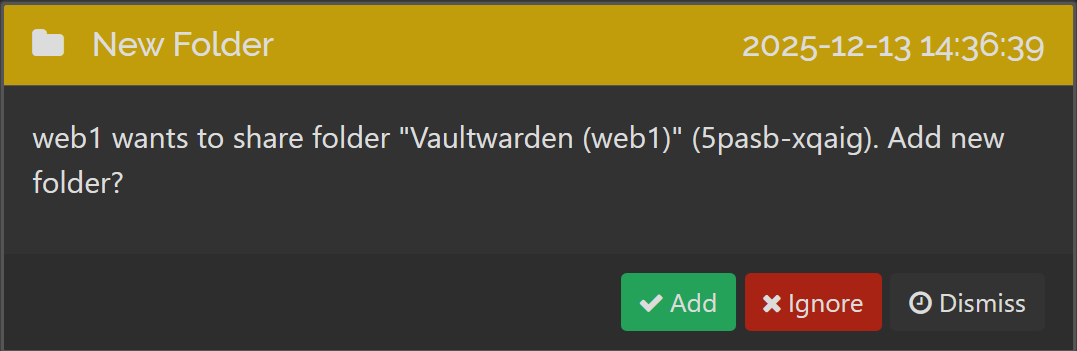

• Open Syncthing on each of your other web nodes and accept the invitation:

• Set up the name, path, trash can, ignore permissions in the Advanced tab and then set up the file/folder patterns to be ignored, as we have done previously.

---

6. Set up Monitoring for Vaultwarden’s Docker Container + Website using UptimeKuma

There are three types of monitors that would be good to set up. If you only have one site or do not have your ‘witness’ site set up yet, then you can have all these checks running of just one UptimeKuma instance.

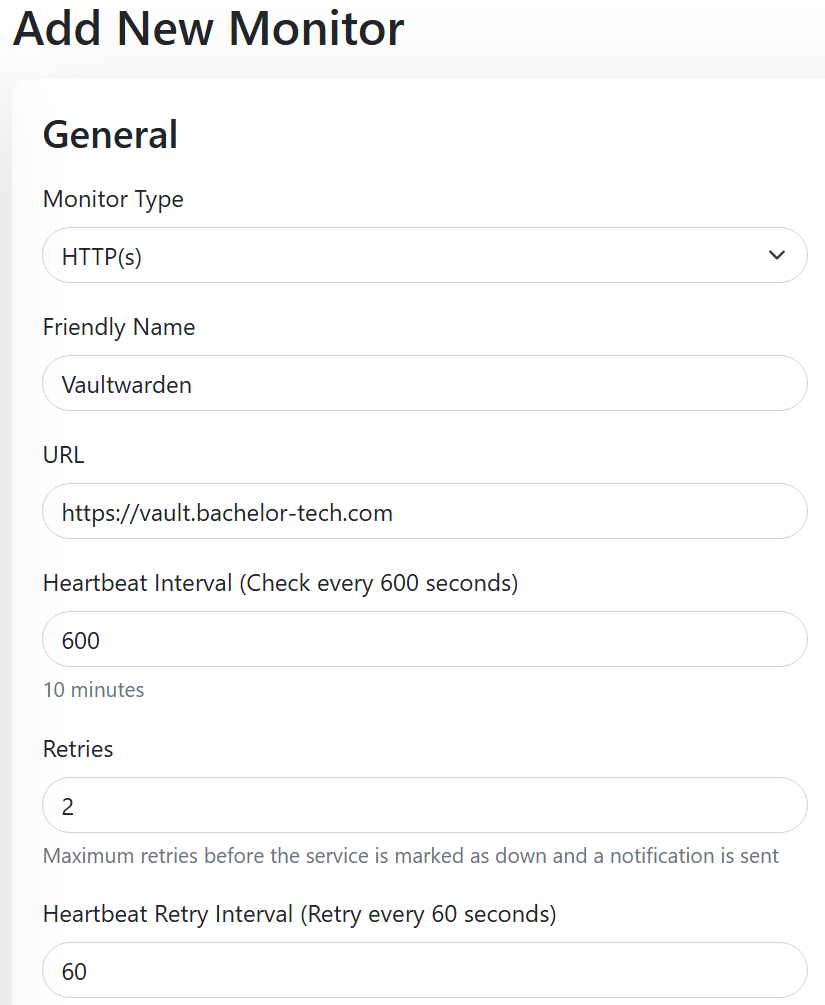

Monitor A. Site 3 - Website Uptime

On Site 3 (VPS - witness site), you can monitor the service as a whole (e.g. does the website load regardless of which site it is being loaded from?).

• Monitor Type: HTTP(s)
• Friendly name: Vaultwarden or similar
• URL: Your actual URL
• Heartbeat: 30-600 seconds (1 to 10 minutes)
• Retries: 1-3
• Heartbeat Retry: a small amount, such as 30-60 seconds

Monitor B. Site 1+2 Docker Container Monitor

For UptimeKuma to see the container, we will need to deploy a Socket Proxy container. The idea is to use the proxy as a ‘gatekeeper’ that provides read-only access to UptimeKuma on a specific port. We will need to apply this on each web server node.

• Create a new folder and a compose file:

# Create a directory for the proxy
sudo mkdir -p /opt/socket-proxy-container

# Go into that directory
cd /opt/socket-proxy-container

# Create the compose file
sudo nano docker-compose.yaml

• Enter the following:

services:
  docker-socket-proxy:
    image: tecnativa/docker-socket-proxy
    container_name: docker-socket-proxy
    restart: unless-stopped
    # High privilege is required to access the raw docker socket
    privileged: true
    ports:
      - "2375:2375"
    volumes:
      # We give it access to the host's docker socket (read-only)
      - /var/run/docker.sock:/var/run/docker.sock:ro
    environment:
      # ENABLE specific read-only permissions
      - CONTAINERS=1 # Allows listing and checking container status
      - INFO=1       # Allows checking general docker info (optional)
      # BLOCK write permissions (security)
      - POST=0       # Blocks any commands that change state (restart/kill/create)

💡 Security Note: The socket proxy exposes read-only Docker API access on port 2375. In a homelab environment on a trusted LAN, this is generally acceptable. For stricter security, bind to a specific IP (192.168.8.9:2375:2375) or implement firewall rules to allow only your UptimeKuma host on port 2375. The most secure method would be to bind it to localhost only and use SSH tunneling, instead.

• Then start the container:

cd /opt/socket-proxy-container
sudo docker compose up -d

# Check that it is running together with the Vaultwarden container:
sudo docker ps -a

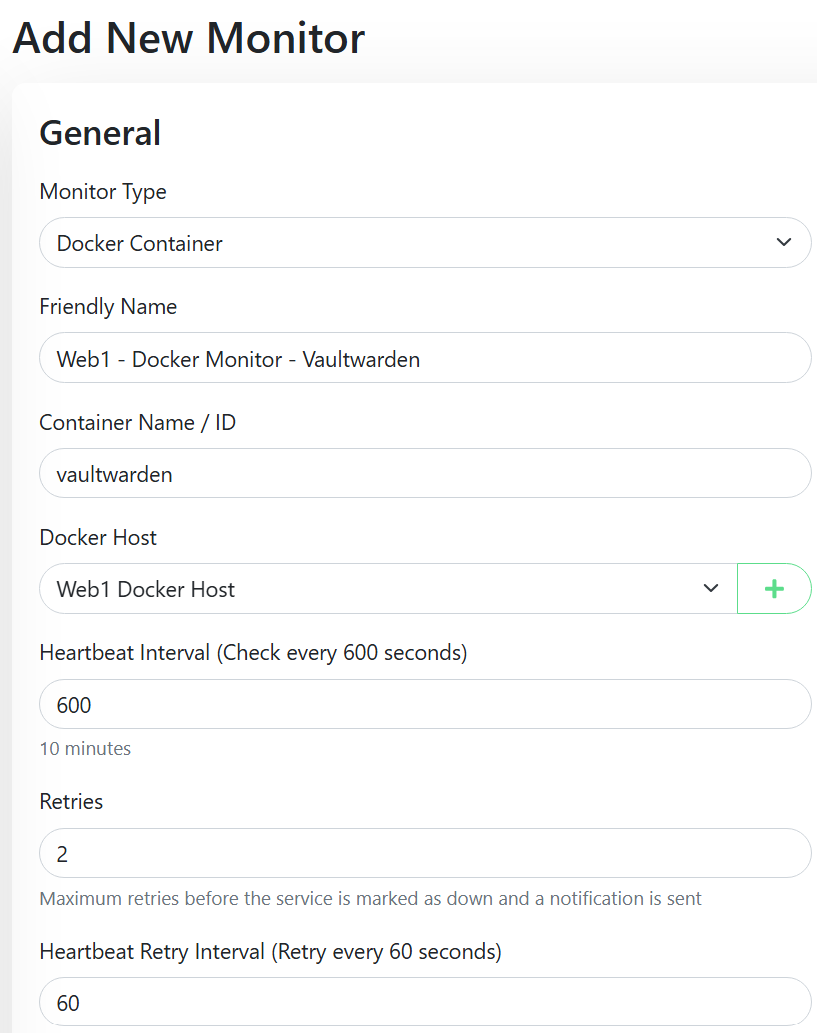

• On Site1/Site2 UptimeKuma, add a new monitor:
  • Monitor Type: Docker Container
  • Friendly name: Web1 - Docker Monitor - Vaultwarden
  • Container name: vaultwarden (as per how it’s shown when you run docker container ps -a on your web server)

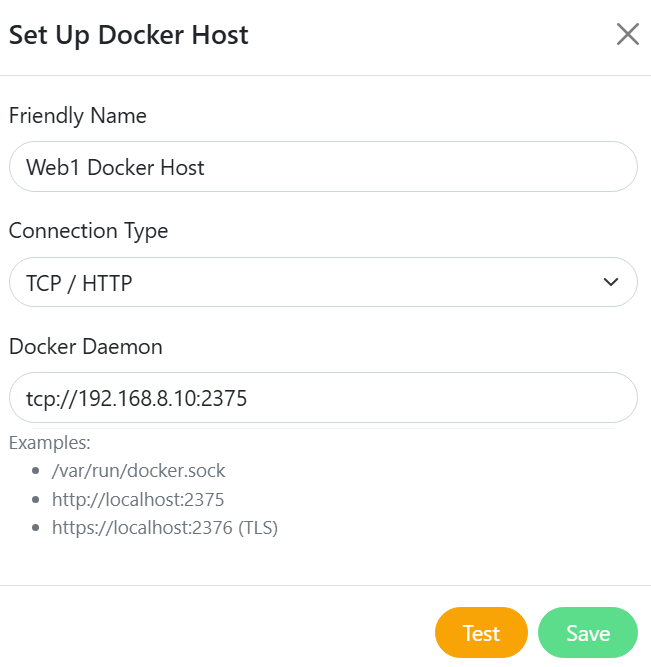

  • Docker host - add a new one:
    • Friendly name: Web1 Docker Host
    • Connection type: TCP / HTTP
    • Docker Daemon: tcp://192.168.8.9:2375 (use your local IP with port 2375)

• The overall monitor for web1 may look like this - remember to repeat this for each web server:

Monitor C. Site 1+2 Syncthing Monitor

The other thing that could stop working over time is Syncthing itself. We can leverage Syncthing’s API for that and push information regularly from each web server into UptimeKuma as a passive ‘push’ monitor.

• Since I have described this method already in my recent guide, please follow the steps from the Syncthing Web HA tutorial.
• You will get notified whenever ANY of the sync jobs are down or even paused, as per your config settings.

---

7. Harden Vaultwarden with Fail2ban

On the VM that runs docker with our Vaultwarden container, we should install fail2ban and secure the docker container. In case you do not have it set up already, you can also secure SSH and your other sites.

Install fail2ban

# 1. Install Fail2ban
sudo apt update
sudo apt install fail2ban -y

# 2. Create a local configuration file (never edit jail.conf directly)
sudo cp /etc/fail2ban/jail.conf /etc/fail2ban/jail.local

Protect SSH on a custom port

• In this case, SSH port is set to a custom port 2222 under /etc/ssh/sshd_config .

sudo nano /etc/fail2ban/jail.local

# Un-commment these:
ignoreself = true

# Add your own IP range (oneself + LAN + docker subnet)
ignoreip = 127.0.0.1/8 ::1 192.168.0.0/16 172.20.0.0/16

# Comment out
# ignorecommand =

# Find an existing section called [sshd] and modify it as follows:

[sshd]
enabled = true
port    = 2222
mode    = aggressive
# The more modern method instead of reading text files
backend = systemd
maxretry = 3
bantime = 1h

• If you have not started the fail2ban client yet, run sudo fail2ban-client start . Otherwise run sudo fail2ban-client reload for the changes above to kick in.

Protect Vaultwarden’s docker container

• In your docker-compose.yml file, ensure that you have the following parameters set:

# Ensure these three are somewhere in your 'environment':
environment:
      - LOG_FILE=/data/vaultwarden.log
      - LOG_LEVEL=info
      - EXTENDED_LOGGING=true

• After changing the values below, run docker compose up -d to apply changes.
• Let’s create a config that instructs fail2ban on what a failed login to Vaultwarden looks like:

sudo nano /etc/fail2ban/filter.d/vaultwarden.conf

[Definition]
# Matches "Admin login attempt failed" and "Invalid password for user"
failregex = .*Username or password is incorrect.*IP: <HOST>

• We will need to define a deny action:

sudo nano /etc/fail2ban/action.d/nginx-deny.conf

[Definition]
actionstart =
actionstop =
actioncheck =
actionban = printf "deny <ip>;\n" >> /etc/nginx/blocklist.conf; systemctl reload nginx
actionunban = sed -i "/deny <ip>;/d" /etc/nginx/blocklist.conf; systemctl reload nginx

• This path does not yet exist, let’s create it and set correct permissions for it:

sudo touch /etc/nginx/blocklist.conf
sudo chmod 664 /etc/nginx/blocklist.conf

• Then we should configure nginx’s config to read from it:

sudo nano /etc/nginx/conf.d/vaultwarden.conf

# Block Banned IPs from fail2ban
include /etc/nginx/blocklist.conf;

• Now we can finally add a new jail for Vaultwarden.

sudo nano /etc/fail2ban/jail.local

[vaultwarden]
enabled = true
# Read logs directly from Docker
backend = systemd
# Which container to watch
journalmatch = CONTAINER_NAME=vaultwarden
# The attacker's port, not the internal port
port    = 80,443,8081
filter  = vaultwarden
# The 'chain=DOCKER-USER' blocks the IP before Docker forwards it
action  = nginx-deny
maxretry = 3
bantime  = 300m # 5min
findtime = 300m # 5 min

• Reload the fail2ban service - sudo fail2ban-client reload .

• Then let’s run a real test: Attempt some failed login attempts from your phone while on mobile network. Attempt some bad logins and refresh the page. You should see your custom 403 page. Then check: sudo fail2ban-client status vaultwarden . Then you can remove your banned IP by running sudo fail2ban-client set vaultwarden unbanip 1.2.3.4 on the affected web server.

  Troubleshooting fail2ban for Vaultwarden on Docker

• Ensure that the log is seeing repeated failed login attempts: sudo docker logs --tail 20 vaultwarden

• Compare the errors with the filter we created earlier - check sudo nano /etc/fail2ban/filter.d/vaultwarden.conf .

  • In case you make modifications, restart the fail2ban service with sudo fail2ban-client restart .

• Run a dry-run using sudo fail2ban-regex systemd-journal /etc/fail2ban/filter.d/vaultwarden.conf

• Is the count increasing but the connection with the device is not being blocked?

  • Ensure that in your nginx config, you have this line included: include /etc/nginx/blocklist.conf;, as otherwise, whatever is there to be blocked will be ignored.
  • Confirm that your nginx-deny config exists, such as by running sudo nano /etc/fail2ban/action.d/nginx-deny.conf .

Ensure local + Cloudflare traffic does not get blocked

If you are using Cloudflare or another proxy-like traffic management that provides you with CDN and traffic filtering and an attacker tries to log into your instance of Vaultwarden, nginx will end up blocking the IP address of the proxy server from Cloudflare rather than their actual one. Such behavior is undesirable, as it would then block legitimate traffic coming from the proxy to your nginx server.

The solution is to whitelist the local and Cloudflare servers as shown on their website. Yet the list changes (not often but from time to time) and it would be tedious to keep it up to date manually. So let’s automate it!

• Create a folder and script:

sudo mkdir /opt/cloudflare-proxies
sudo nano /opt/cloudflare-proxies/update-cloudflare-ips.sh

#!/bin/bash

# Download Cloudflare IPs
echo "# Cloudflare IPs - Auto Updated" > /etc/nginx/snippets/trusted-proxies.conf

# Internal IPs - modify this to reflect your local subnet
echo "set_real_ip_from 192.168.0.0/16;" >> /etc/nginx/snippets/trusted-proxies.conf

# IPv4
for ip in $(curl -s https://www.cloudflare.com/ips-v4); do
        echo "set_real_ip_from $ip;" >> /etc/nginx/snippets/trusted-proxies.conf
done

# IPv6
for ip in $(curl -s https://www.cloudflare.com/ips-v6); do
        echo "set_real_ip_from $ip;" >> /etc/nginx/snippets/trusted-proxies.conf
done

# Headers
echo "real_ip_header X-Forwarded-For;" >> /etc/nginx/snippets/trusted-proxies.conf
echo "real_ip_recursive on;" >> /etc/nginx/snippets/trusted-proxies.conf

# Reload Nginx as part of the script
sudo systemctl reload nginx

• Run this script to verify it works as expected, then make it executable:

# Run it
sudo bash /opt/cloudflare-proxies/update-cloudflare-ips.sh

# You should see the IPs from the script in there
cat /etc/nginx/snippets/trusted-proxies.conf

# Make the script executable
sudo chmod +x /opt/cloudflare-proxies/update-cloudflare-ips.sh

# Add it to run weekly via a cron job
sudo crontab -e

# Add the following entry in there
0 4 * * 1 /bin/bash /opt/cloudflare-proxies/update-cloudflare-ips.sh

• Add it into your virtual host on nginx:

sudo nano /etc/nginx/conf.d/vaultwarden.conf
 # Add the text below under the server { directive:

# Whitelist Cloudflare proxies & internal subnet:
include /etc/nginx/snippets/trusted-proxies.conf;

• Double check the syntax and reload nginx:

sudo nginx -t
sudo systemctl reload nginx

---

8. Bonus: Customize the 403 Forbidden page on Nginx

While you might have a custom page on your reverse proxy side for when your nodes are down, you may not have one for nginx. Let’s create it.

• Create a custom snippet configuration file that we will then include with our nginx config:

sudo nano /etc/nginx/snippets/custom-error-403.conf

        error_page 403 /custom-403.html;
        location = /custom-403.html {
                allow all;
                root /var/www/html/;
                internal;
                sub_filter 'SERVER_ID' $hostname;  # Replace placeholder with hostname
                sub_filter_once on;
        }

• In the custom 403 error file, we point to the /var/www/html folder, which is typical for Ubuntu and Debian installations. Some other flavors may use /usr/share/nginx/html . The choice is yours :)
• Then let’s create the actual file:

sudo nano /var/www/html/custom-403.html

• The template I downloaded from this source - kudos to dr5hn.

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>403 Forbidden</title>
    <style>
        @import url("https://fonts.googleapis.com/css?family=Press+Start+2P");

        html,
        body {
            width: 100%;
            height: 100%;
            margin: 0;
        }

        * {
            font-family: 'Press Start 2P', cursive;
            box-sizing: border-box;
        }

        #app {
            padding: 1rem;
            background: black;
            display: flex;
            height: 100%;
            justify-content: center;
            align-items: center;
            color: #54FE55;
            text-shadow: 0px 0px 10px;
            font-size: 6rem;
            flex-direction: column;
        }
        #app .txt {
            font-size: 1.8rem;
            text-align: center; /* This centers the text content */
            /* Removed justify-content and align-items as they don't apply here */
        }
        @keyframes blink {
            0% {
                opacity: 0;
            }

            49% {
                opacity: 0;
            }

            50% {
                opacity: 1;
            }

            100% {
                opacity: 1;
            }
        }

        .blink {
            animation-name: blink;
            animation-duration: 1s;
            animation-iteration-count: infinite;
        }
    </style>
</head>

<body>
    <div id="app">
        <div>403</div>
        <div class="txt"> Blocked by fail2ban (SERVER_ID)<span class="blink">_</span> </div>
    </div>
</body>

</html>

• Ensure that the html file is accessible to the user that executes nginx - in my case, this was www-data:

sudo chown www-data:www-data /var/www/html/custom-403.html

• Now you can edit any of the sites where you would like to apply this config (such as in /etc/nginx/conf.d/vaultwarden.conf ) and add a snippet in there:

sudo nano /etc/nginx/conf.d/vaultwarden.conf

# Find the server directive and add the following:
include /etc/nginx/snippets/custom-error-403.conf;

• For completeness, here is the full Nginx Vaultwarden config file:

server {
    # We listen on 80 because HAProxy handles the SSL/HTTPS before it gets here.
    listen 8081;

    # Replace with your actual FQDN
    server_name vault.yourdomain.tld;

    # Handled below by the whitelisting script already - do not duplicate!
    # Replace OPNSense's IP with the actual one to block the right users with fail2ban:
    # set_real_ip_from 192.168.0.0/16; real_ip_header X-Forwarded-For; real_ip_recursive on;

    # Whitelist Cloudflare proxies & internal subnet:
    include /etc/nginx/snippets/trusted-proxies.conf;

    # Find the server directive and add the following:
    include /etc/nginx/snippets/custom-error-403.conf;

    # Block Banned IPs from fail2ban
    include /etc/nginx/blocklist.conf;

    # Allow large attachments (optional, but good for saving PDFs/Images in vault)
    client_max_body_size 128M;

    location / {
        proxy_pass http://127.0.0.1:8000;

        # WebSocket support (used by /notifications/hub)
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";

        # Pass headers so Vaultwarden knows the real IP of the user, not just "127.0.0.1"
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

• Then remember to reload the nginx service

sudo nginx -t
sudo systemctl reload nginx

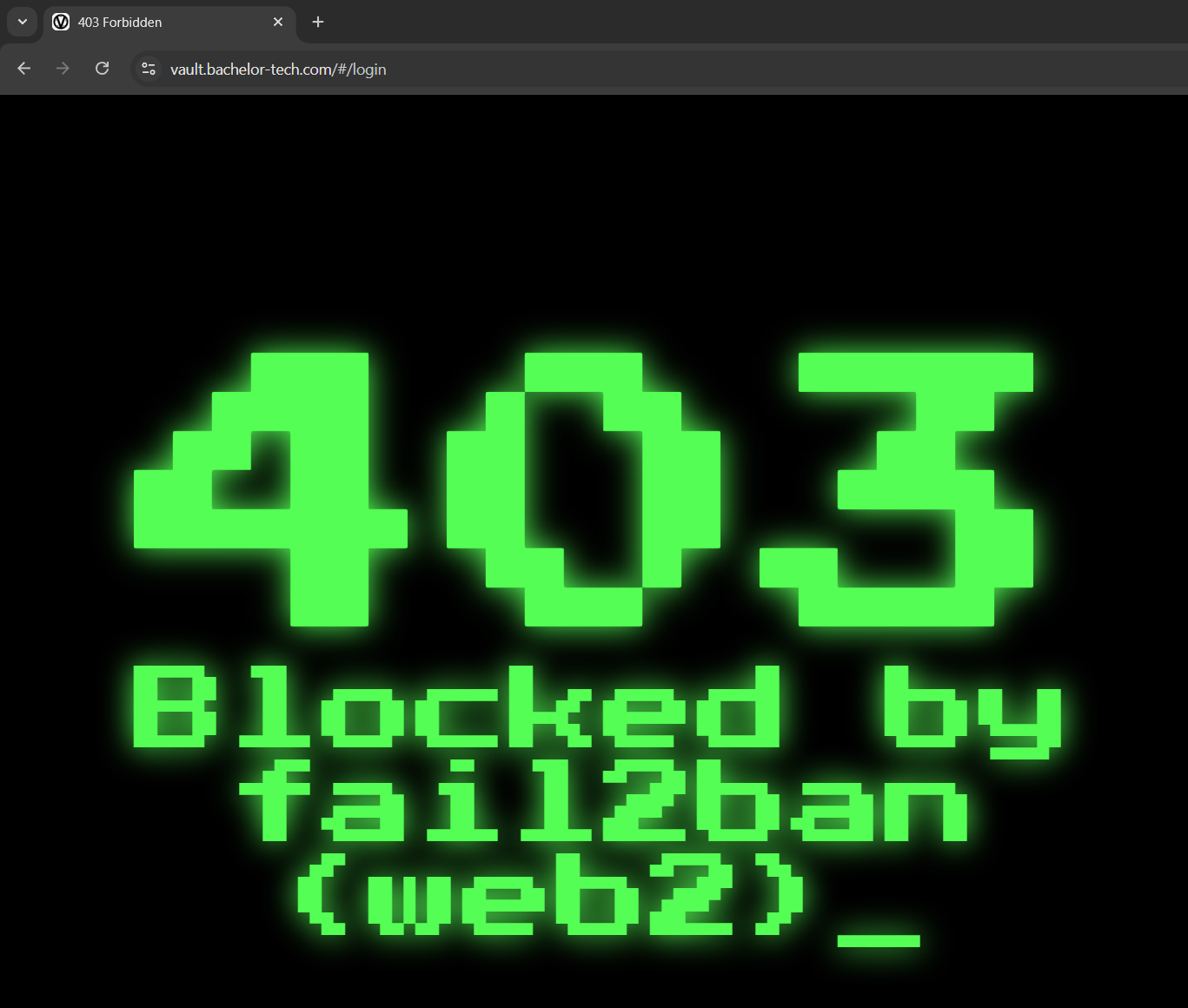

• Run a test. In my case (zoomed in a bit), it looks like this - while indicating which web server blocked it. For production use, you may wish to modify it.

As mentioned before, if you have more nginx servers that you spread the load amongst, you would need to apply these steps on each of them.

---

9. Migrate your data from Bitwarden to Vaultwarden

Congratulations, the hardest part is done! Your infrastructure is in place including detailed monitoring on a granular level. Let’s migrate your existing data from Bitwarden. How can you move them over?

Migrating your Bitwarden data

Each user (you, your spouse, kids, etc.) imports their own private items.

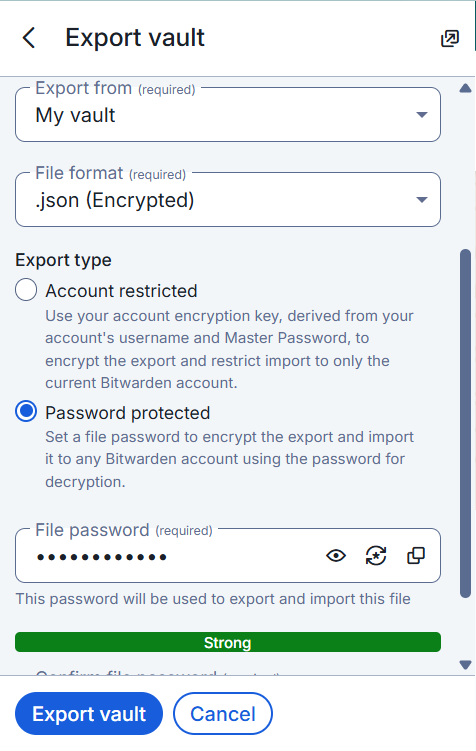

• Export: Log in to your existing Bitwarden Web Vault.
  • Go to Tools > Export Vault.
  • Select format .json (Encrypted) if you know how to decrypt it, or .json (Plaintext). Warning: Plaintext is readable, handle with care. You can import an encrypted file just fine.

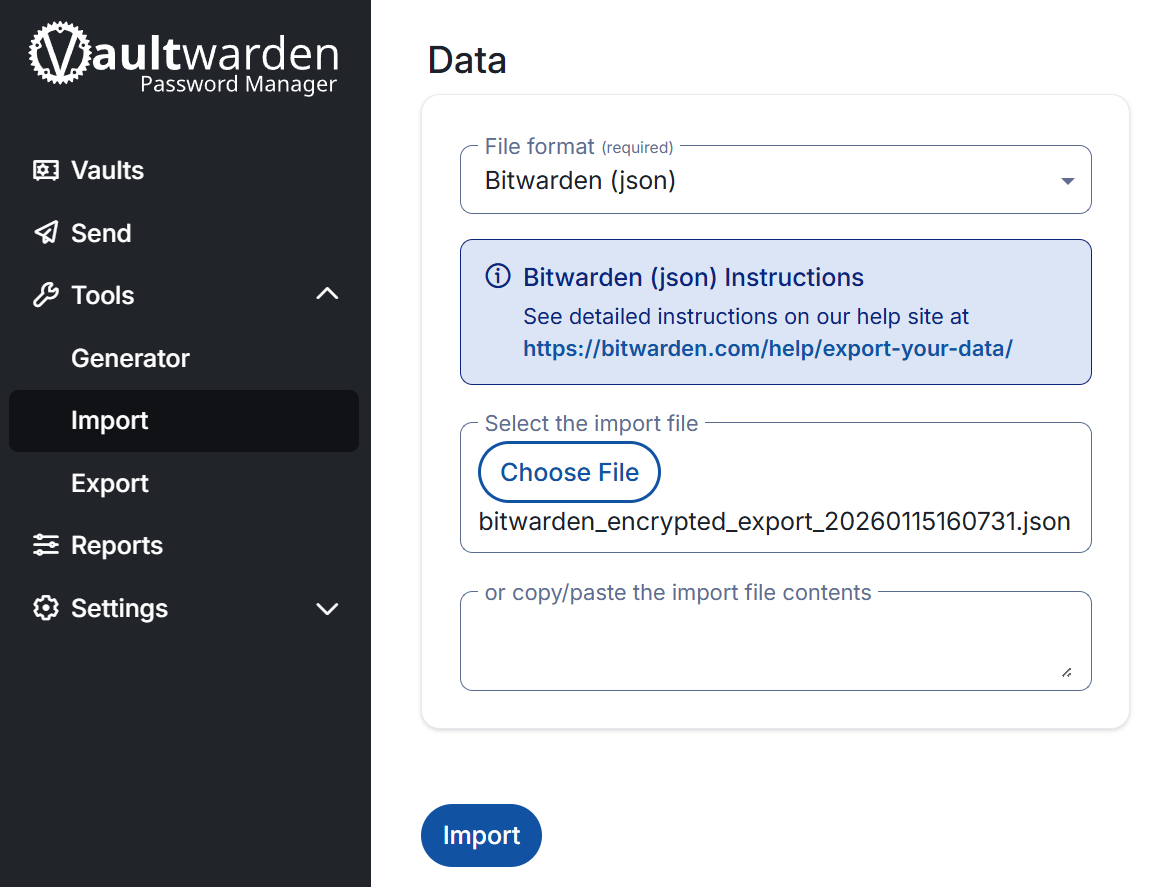

• Import: Log in to your new Vaultwarden instance.
  • Create your user account (ensure SIGNUPS_ALLOWED=true in the docker-compose.yml file at least at the beginning for your own account, the others you can invite).
  • Go to Tools > Import Data.
  • Select Bitwarden (json).
  • Paste the content or upload the file. If you are using the recommended encrypted .json file, you will be prompted for a password.

- Give it some time without refreshing the page for the credentials to import.

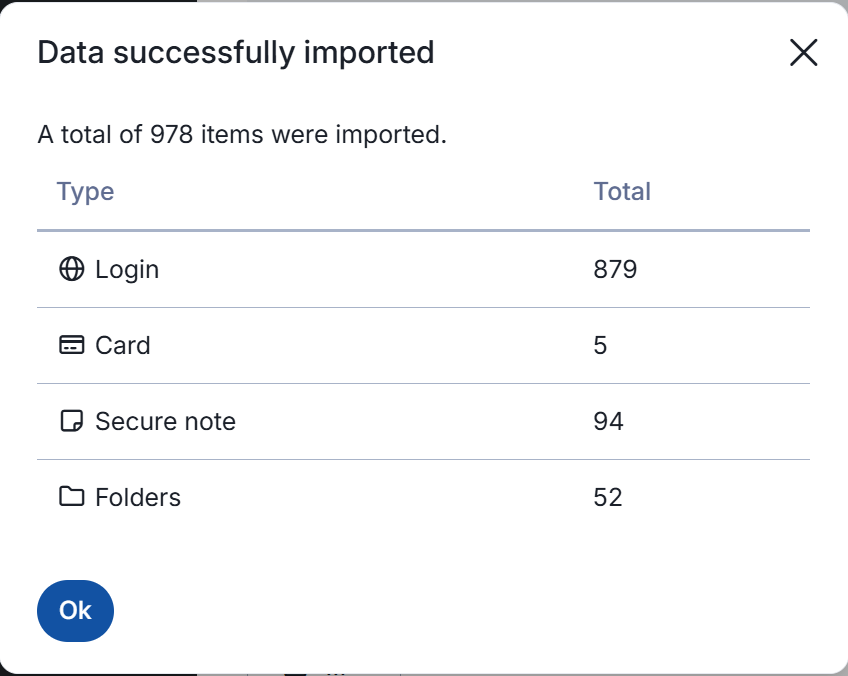

- You will then be greeted with a confirmation that the import has finished.

💡 Note

Moving an Organization (or a Family org) is done in the same way as the personal vault, you just need to export them and import them separately. Collections are re-created automatically during the import, you do not need to create them before the import.

Handling special items in Vaultwarden

• SSH Keys are stored as standard "Items" in the database (similar to Logins or Cards). They will be included in the JSON export and should appear in Vaultwarden automatically.
• Attachments - standard JSON exports do not contain file attachments (images, PDFs, keys attached as files). You must move these manually. While a .zip export that includes attachments is available in Bitwarden, importing this into a self-hosted Organization often fails or isn't fully supported by the importer yet. Manual is the safest bet for integrity.
• Sends (temporary links) - these cannot be exported. If you have active Sends, you will need to manually recreate them in the new instance.

Log into your Vaultwarden using Bitwarden browser plugin

• If, like many other users, you use the browser plugin for Bitwarden, you can also use it for Vaultwarden.

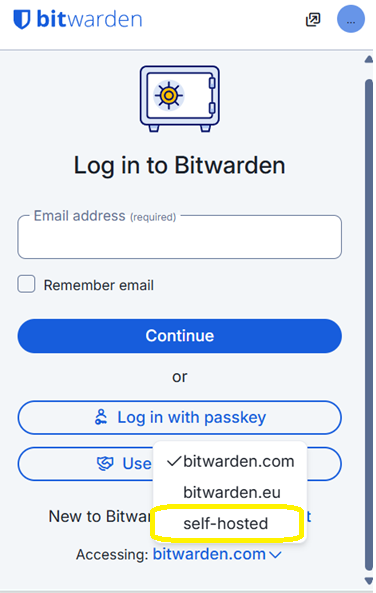

• Simply log out your Bitwarden account and, as shown below, click on the ‘Accessing’ option and choose ‘self-hosted’.

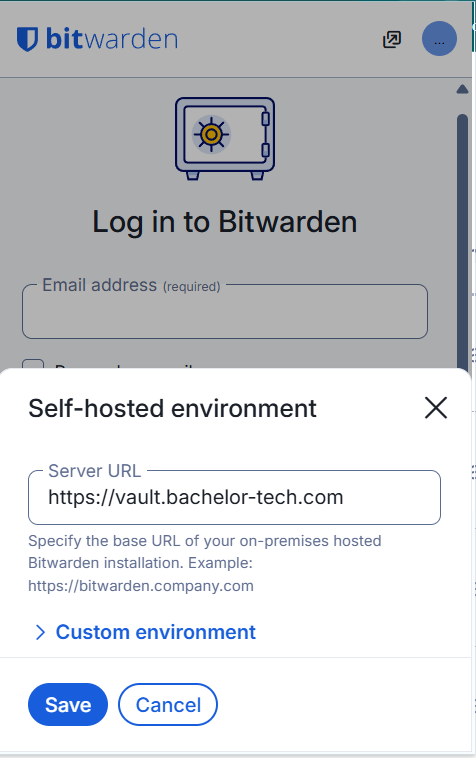

• Enter the URL of your instance.

💡 Note

Once your initial accounts are set up and no more sign ups are required, remember to open each docker-compose.yml file on each web server and ensure that SIGNUPS_ALLOWED is set back to false. This is especially sensitive if your Vaultwarden instance is public-facing, as otherwise, anyone could create accounts and use your service, including bots.

Set up user/org policies

Before inviting users, it is vital to set some ‘ground’ rules for authentication and other security policies.

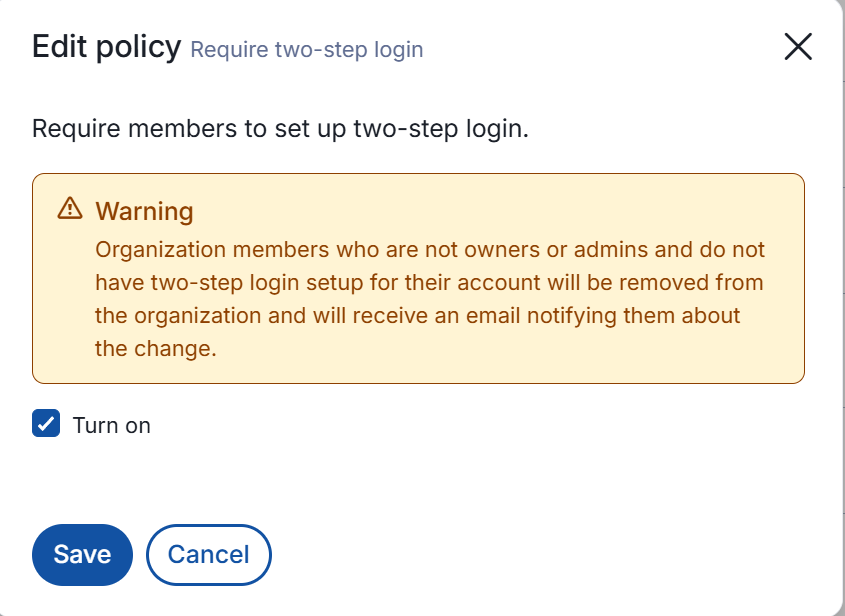

• Go to Settings → Policies → Require two-step login. Turn it on.

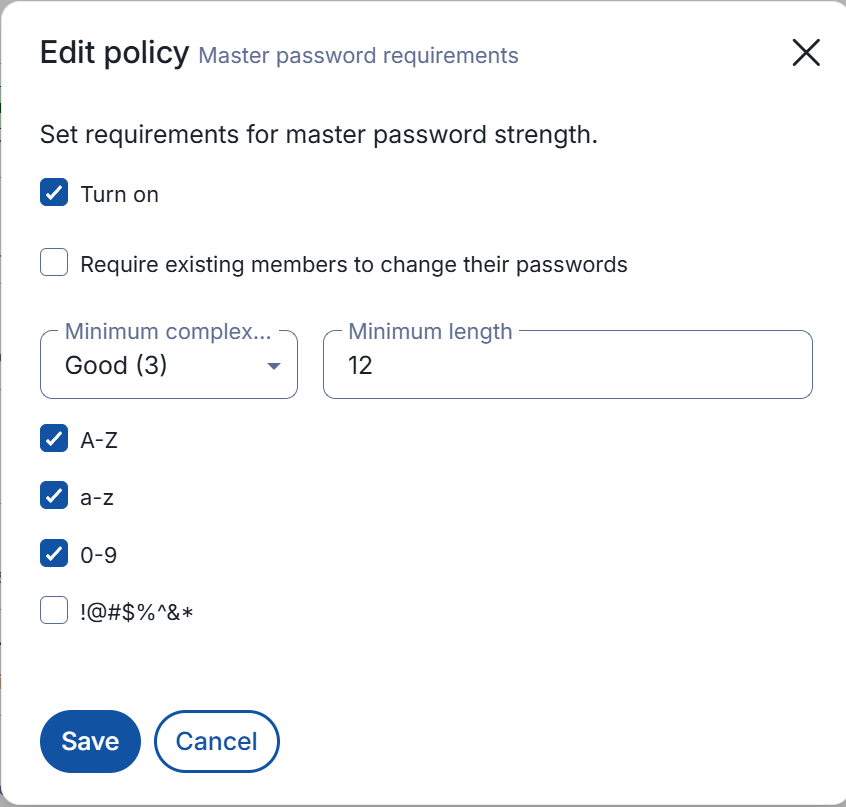

• Similarly, set up Master password requirements. Their length matters way more than complexity. Minimum recommended is 12 characters (marked as ‘Good (3)’ in Vaultwarden).
• Based on your preferences, you can enforce additional policies.

Invite other Vaultwarden members

Since this is a new server, your family members technically need "new" accounts.

• Have family members sign up on your new Vaultwarden URL.
• Go to your Organization > Members > Invite Member.
• Type their email (must match what they signed up with). Verify that they received an email based on the SMTP settings you placed in your docker-compose.yml file previously.
• Once they accept the invite, go back to Members and ‘Confirm’ them in the Members tab.
• Assign them to the correct Collections (e.g. children manage only their own collection).

Feel free to play with additional settings in Vaultwarden web UI. Are there additional considerations to take into account? How about backup and restoration? Or how can you go about updating your Vaultwarden instance? We will review these in our last step.

---

10. Backups, Restoration & Additional Security Considerations

In this article, I did not cover how to best harden your web and DB servers. It is assumed that it is already done.

Backup & Recovery

While this set up is fully HA in terms of the web and DB servers being available on two sites (with a Galera witness on a VPS outside), HA does not equal backups. In the event of a breach (like ransomware) or a cascading service failure, you will need a form of archived backups, ideally going back a few months, so that you can determine the nearest and still safest version of your data.

• The recommended approach is to follow the 3-2-1 principle, i.e. by having 3 total copies of your data (the original plus two backups), storing them on 2 different media types (e.g. SSDs and cloud-based), and keeping at least 1 copy in an off-site location to protect against data loss from hardware failure, cyberattacks, or natural disasters.
• In addition, it is highly advisable to have a copy stored not just off-site but also off-line from secure threats. Because consider what happens if you lose all your passwords and stored SSH keys! Proper care needs to be given, even if it is not done as often. In a homelab environment, an example could be copying an encrypted version of the exported Vaultwarden data onto a memory stick that is stored in your parents’ house twice a year.
• Components to back up:

Component	Location	Priority	Notes
Vaultwarden data directory	/opt/vaultwarden/vw-data/	Critical	Contains RSA keys, attachments, icons, config
MariaDB/Galera database	Vaultwarden database	Critical	Contains all vault entries, users, organizations
Docker Compose file	/opt/vaultwarden/docker-compose.yml	High	Contains your environment configuration
Nginx virtual host	/etc/nginx/conf.d/vaultwarden.conf	Medium	Can be recreated but saves time
SSL certificates	Managed by ACME/OPNSense	Low	Can be regenerated

Check out my previous article on how to back up VMs and LXCs from Proxmox onto a GCP’s archive storage!

Recovery Situations

Below are three common scenarios that may occur:

• Scenario A: Single Web Node Failure. If one web server fails but others are operational:

  • Restore the VM from Proxmox backup (or rebuild from template)
  • Syncthing will automatically sync /opt/vaultwarden/vw-data/ from healthy nodes
  • Verify RSA keys match: md5sum /opt/vaultwarden/vw-data/rsa_key.* (compare across nodes)
  • Start the container: cd /opt/vaultwarden && sudo docker compose up -d
  • Verify in HAProxy that the node rejoins the backend pool

• Scenario B: Database Corruption or Loss

  • Stop Vaultwarden containers on ALL web nodes to prevent writes: cd /opt/vaultwarden && sudo docker compose down
  • On your preferred (primary) Galera node, restore the database: gunzip < /var/backups/vaultwarden/vaultwarden_YYYY-MM-DD_HHMMSS.sql.gz | mysql -u root -p vaultwarden
  • Verify Galera sync status: mysql -u root -p -e "SHOW STATUS LIKE 'wsrep_cluster_size';"
  • Restart Vaultwarden containers on all nodes

• Scenario C: Complete Site Loss

  • If both sites are compromised (e.g., ransomware), do NOT connect backup media to infected systems.
  • Rebuild infrastructure from clean Proxmox templates
  • Restore database from off-site/offline backup
  • Restore /opt/vaultwarden/vw-data/ from backup (this includes the RSA keys).
  • Update DNS if IP addresses changed - do not open a public DNS record but rather a local record (such as on OPNSense by utilizing the Unbound DNS service).
  • Have all users verify their vaults and re-authenticate devices

Testing Your Backups

Backups are worthless if you cannot restore from them. Schedule quarterly restore tests:

# On a test VM (not production!), verify database backup integrity:*

gunzip -t /var/backups/vaultwarden/vaultwarden_latest.sql.gz && echo "Archive OK"

# Test actual restoration to a temporary database:*
mysql -u root -p -e "CREATE DATABASE vaultwarden_test;"
gunzip < /var/backups/vaultwarden/vaultwarden_latest.sql.gz | mysql -u root -p vaultwarden_test
mysql -u root -p -e "SELECT COUNT(*) FROM vaultwarden_test.users;"
mysql -u root -p -e "DROP DATABASE vaultwarden_test;"

Updating Vaultwarden

This part is simple, yet for completion, let’s cover it.

• It is always good to look into the release notes before updating in case some larger changes have been made that could break a dependency.
• Take a snapshot of your web node before you carry out any changes.
• Then proceed on each web node:

# Pull the latest image:
sudo docker pull vaultwarden/server

# Restart the docker container
cd /opt/vaultwarden
sudo docker compose down && sudo docker compose up --force-recreate
# Once it loads and you can see the new version has loaded, press 'd' to detach it

Securing other components of your stack

Yet if you are looking for some tips, look at my previous article on how to deploy a DB Galera cluster that touch on how you can use tools like ufw firewall, fail2ban for securing your SSH access.

Putting Vaultwarden behind a VPN

So what else could we consider? You could consider NOT having a resolvable public DNS name for your Vaultwarden instance and instead, have it available only internally on your LAN. Then, if you have a VPN client deployed (such as a WireGuard plugin in your OPNSense instance), you could make it available only via that VPN connection. Security by obscurity is still a thing!

On your phone and other mobile devices, you can then install the VPN client to reach your Vaultwarden server. Alternatively, if you do not often update your passwords, simply let it sync whenever you are on your LAN - when outside, your mobile device will work off its local cache, preserving access to all the passwords up to the time of your last sync.

What else could go wrong?

While this guide is already rather comprehensive, there are quite a few other things that could go wrong (mostly related to the infrastructure) that could affect your Vaultwarden’s uptime. Examples include:

• Galera cluster split-brain scenarios - What happens if sites lose connectivity while both are accepting writes?
• Certificate renewal failures - ACME/Let's Encrypt certificates expire; what if renewal fails?
• Syncthing out-of-sync states - How to identify and resolve when folders get stuck in ‘Syncing’ state
• HAProxy backend health check failures - How to diagnose when health checks fail but the service appears to be running
• WebSocket connection issues - Users report ‘offline’ status in apps despite the site being reachable
• Database migration version conflicts - What if nodes are running different Vaultwarden versions with different schema expectations?

Let me know in the comments below in case you have come across any or if you would like me to expand on how to recover from these before you encounter them yourself 😇

This concludes our guide. I hope you enjoyed it.
