5. Bonus: Add UPS monitoring to Uptime Kuma

Would it not be nice to also get an alert via UptimeKuma if power has gone down? This is an ideal case for a passive (push) monitor that would go from your RPi to regularly report the state.

On your UptimeKuma instance:
Click the “Add New Monitor” button.
Fill out the form:
Monitor Type: Select “Push”.
Friendly Name: UPS Battery Status
Heartbeat Interval: 70 (This means if the Pi fails to check in for 70 seconds, the monitor will go “Down”).
After you select “Push,” Uptime Kuma will generate a Push URL. It will look something like this: http://A.B.C.D:3001/api/push/LzGjP4k9q
Copy this URL up to the code (not the part after ?).
Keep it open and save it once the crontab job (later on) is set up.

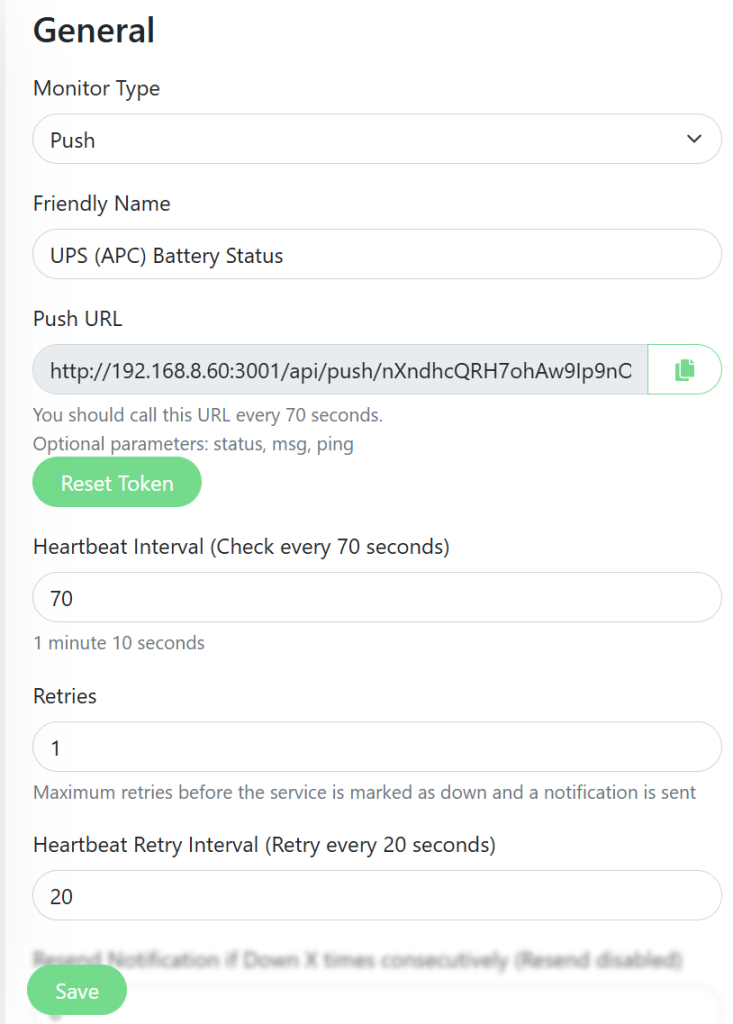

Create a new Uptime Kuma passive push monitor. — Create a push monitor in Uptime Kuma and save the code in the URL.

On your RPI:

sudo -i
nano /usr/local/sbin/push_ups_to_kuma.sh

#!/bin/bash

# --- CONFIGURATION ---
PUSH_URL="<http://A.B.C.D:3001/api/push/CODE>"
#PUSH_URL="<http://192.168.8.60:3001/api/push/nXndhcQRH7ohAw9Ip9nOP3BMk9kcf2zr>"

# Full paths for all commands (cron-safe)
APCACCESS_CMD="/usr/sbin/apcaccess"
GREP_CMD="/usr/bin/grep"
AWK_CMD="/usr/bin/awk"
CURL_CMD="/usr/bin/curl"

# Get the raw status text (e.g., "ONLINE" or "ONBATT")
STATUS_MSG=$($APCACCESS_CMD | $GREP_CMD "STATUS" | $AWK_CMD '{print $3}')

# Get the battery value (per your UPS model)
BATT_VAL=$($APCACCESS_CMD | $GREP_CMD "BCHARGE" | $AWK_CMD '{print $3}')

# Set as 'up' only if battery is 'ONLINE'
KUMA_STATUS="up"
if [ "$STATUS_MSG" != "ONLINE" ]; then
    KUMA_STATUS="down"
fi

echo "Sending to Kuma: Kuma Status=${KUMA_STATUS}, UPS Status=${STATUS_MSG}, Battery=${BATT_VAL}%"

# Send the data to Uptime Kuma
$CURL_CMD \\
    --get \\
    --data-urlencode "status=${KUMA_STATUS}" \\
    --data-urlencode "msg=${STATUS_MSG}, battery at ${BATT_VAL}%." \\
    "$PUSH_URL"

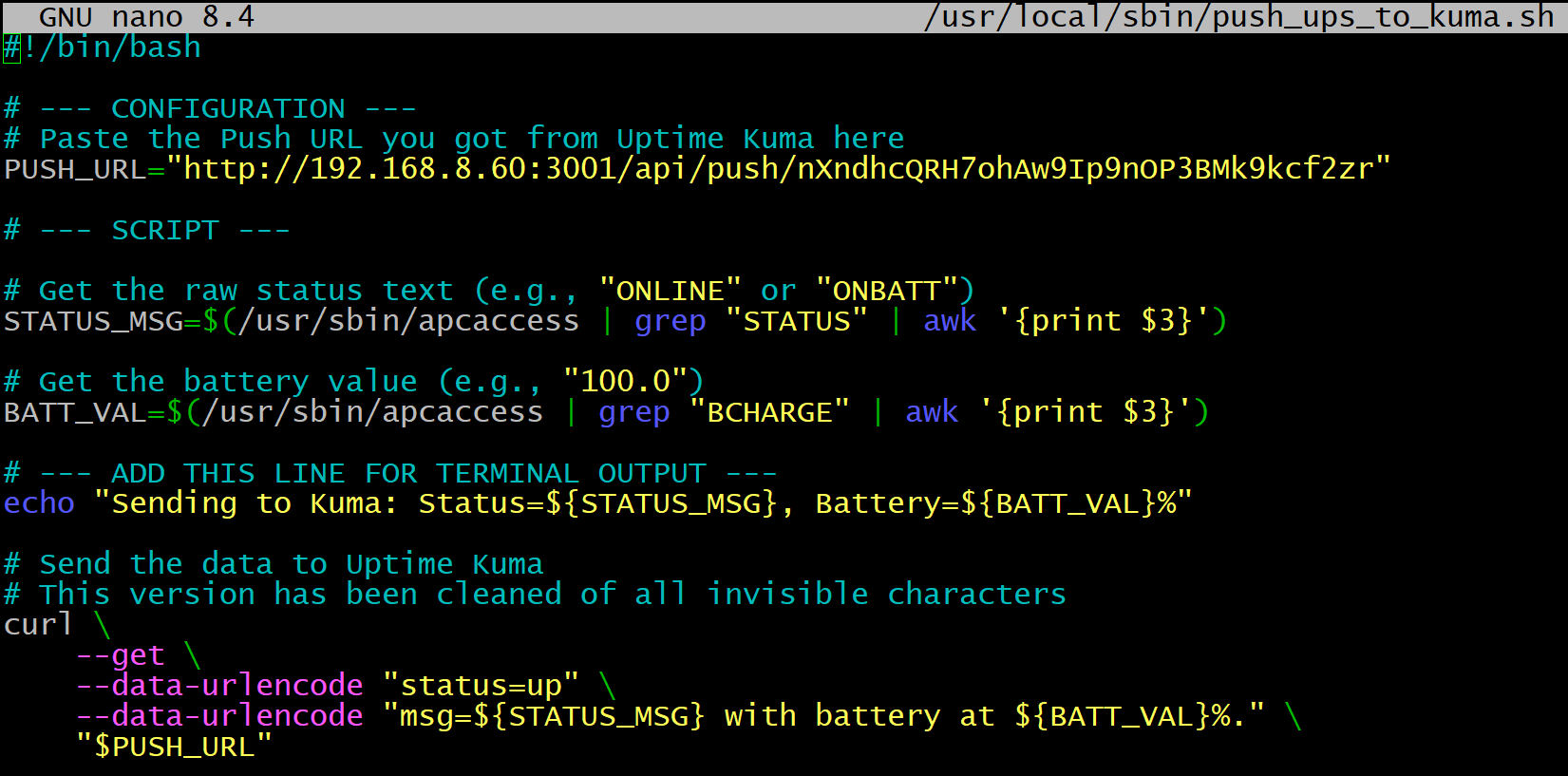

A screenshot from nano that showcases the push for UptimeKuma. — Our push script for UptimeKuma

Make the script executable:

chmod +x /usr/local/sbin/push_ups_to_kuma.sh

Add it to crontab to run every minute:

crontab -e

# Send UPS status to Uptime Kuma every minute
* * * * * /usr/local/sbin/push_ups_to_kuma.sh >/dev/null 2>&1

Ensure the UptimeKuma monitor is saved and watch the magic happen 😇

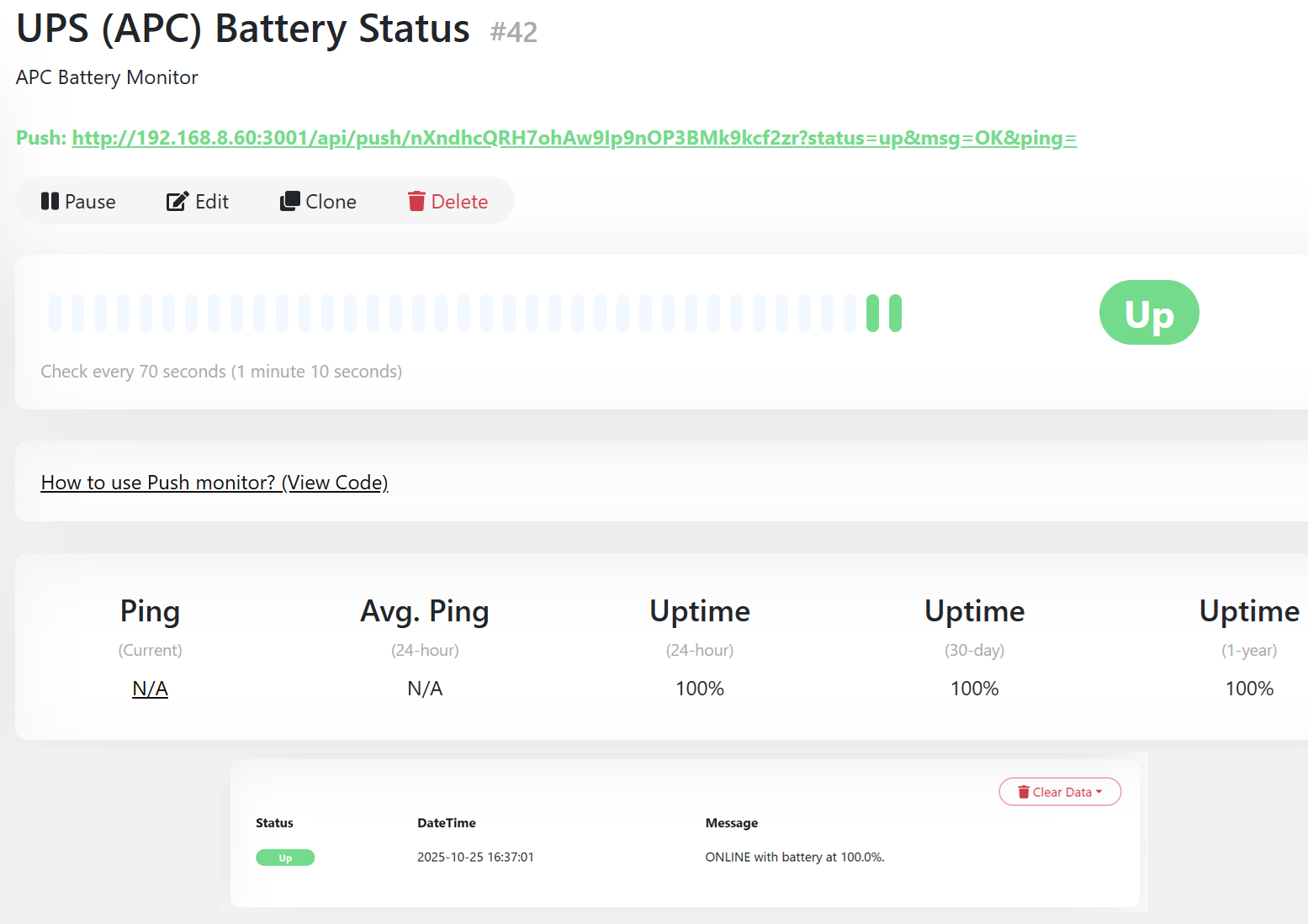

Uptime Kuma showing the battery percentage in its status update. — Demonstration of the push monitor running in Uptime Kuma

Ok, we are ready for a battery test at last – let’s see what happens when we unplug the power!
