5. Set up Syncthing for Vaultwarden data sync

To ensure that the uploaded data stay consistent across multiple web servers, we will employ Syncthing, which I already use on my web servers. If you would like some help with deploying it, check out my previous tutorial on How to Configure HA for Web Servers.

• The permissions depend on which user runs the Syncthing service. In my case, this is www-data. We will need to ensure that this user has access to Docker for monitoring purposes:

# Stop the container briefly to ensure the folder is free:
cd /opt/vaultwarden
sudo docker compose down

# Grant the 'www-data' user full Read/Write access to the docker volume
# using ACLs (Access Control Lists). This persists even if Docker recreates files.
sudo setfacl -R -m u:www-data:rwx /opt/vaultwarden/vw-data
sudo setfacl -d -m u:www-data:rwx /opt/vaultwarden/vw-data

# Start the container again (in a detached mode to free up the shell):
sudo docker compose up -d

• Assuming you have Syncthing already deployed, add a new folder on web1:

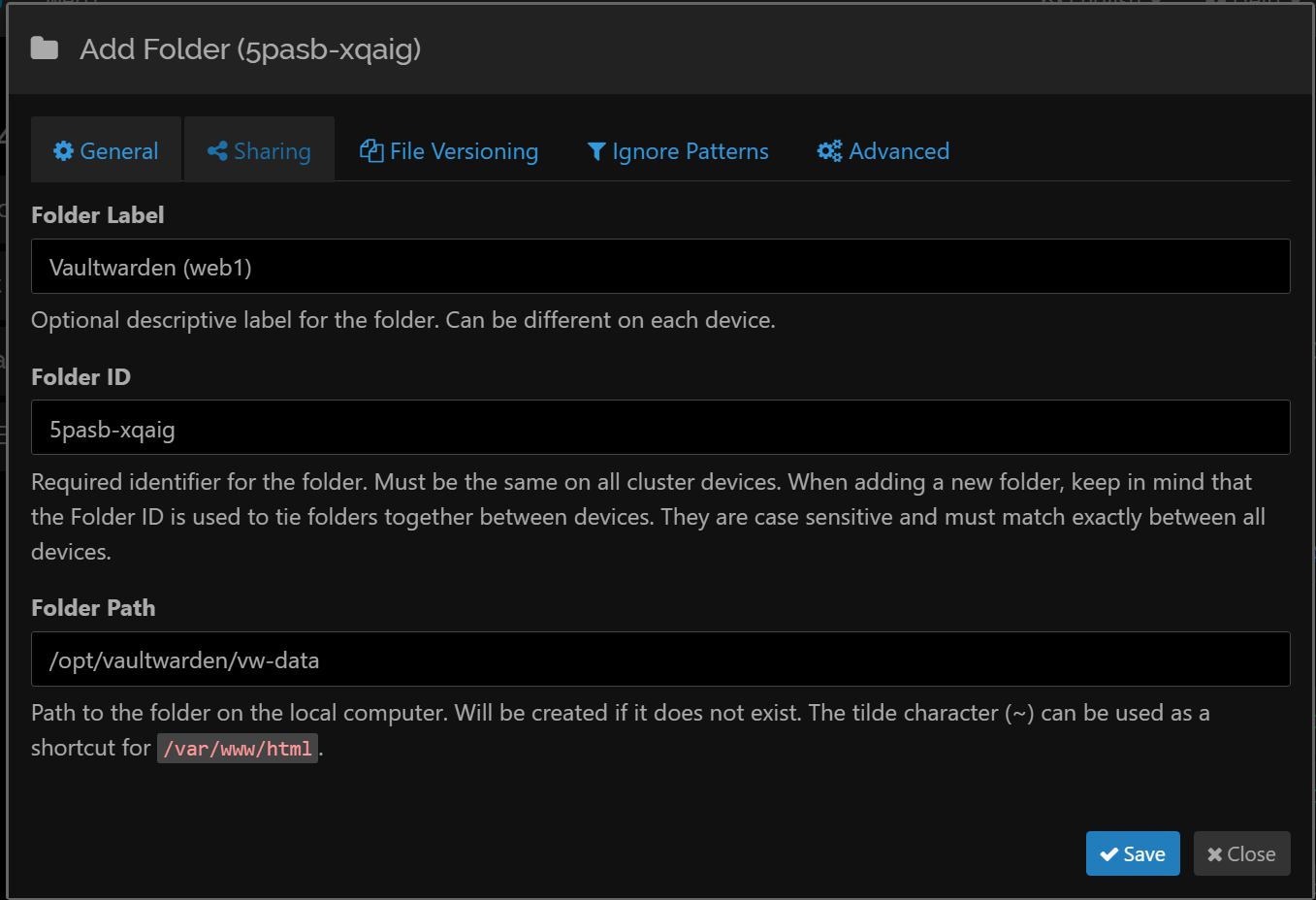

  • General tab
    • Label: Vaultwarden (web1)
    • Path: /opt/vaultwarden/vw-data
  • Sharing tab → if you already have your other Syncthing web servers defined, then tick the boxes.
  • File versioning tab→ It is recommended to set up ‘Trash can versioning’ for 30 days+.

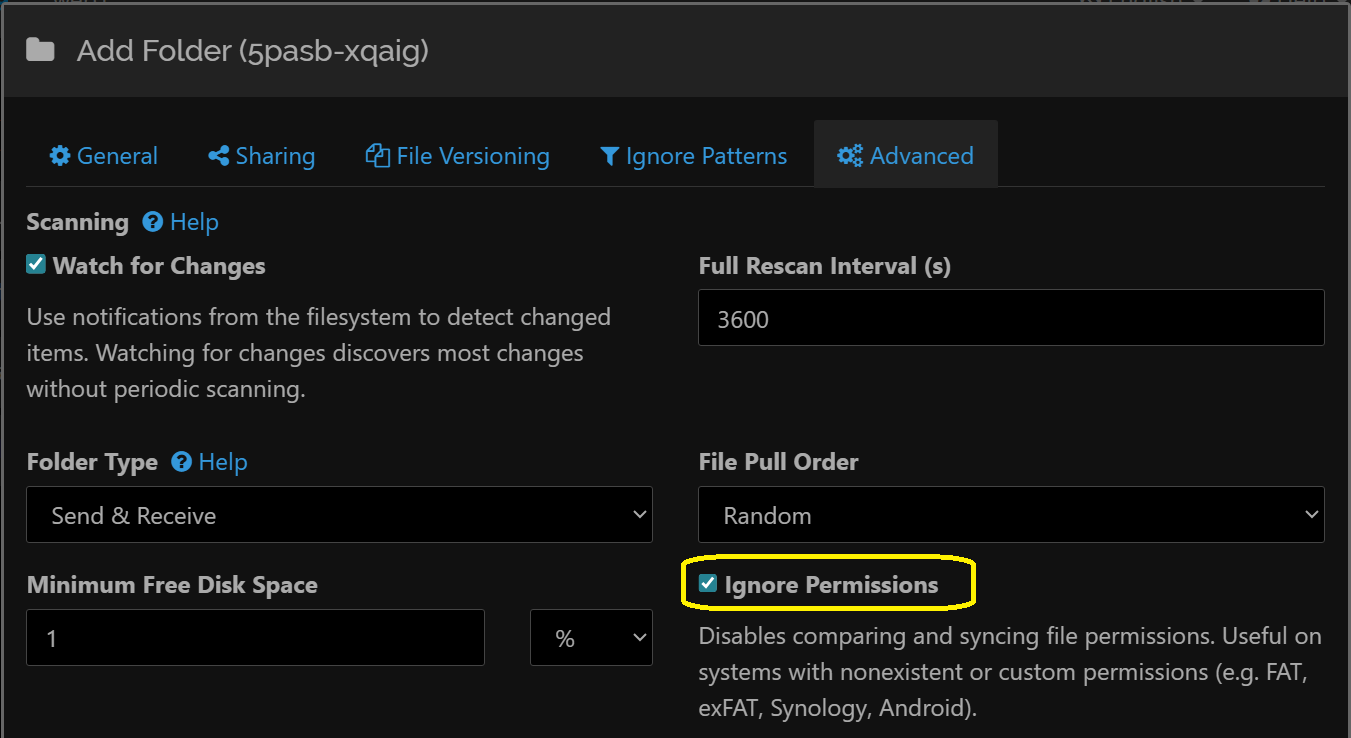

  • Skip to the Advanced tab → Check [x] Ignore Permissions (Docker manages the ownership, Syncthing just moves the data bits).

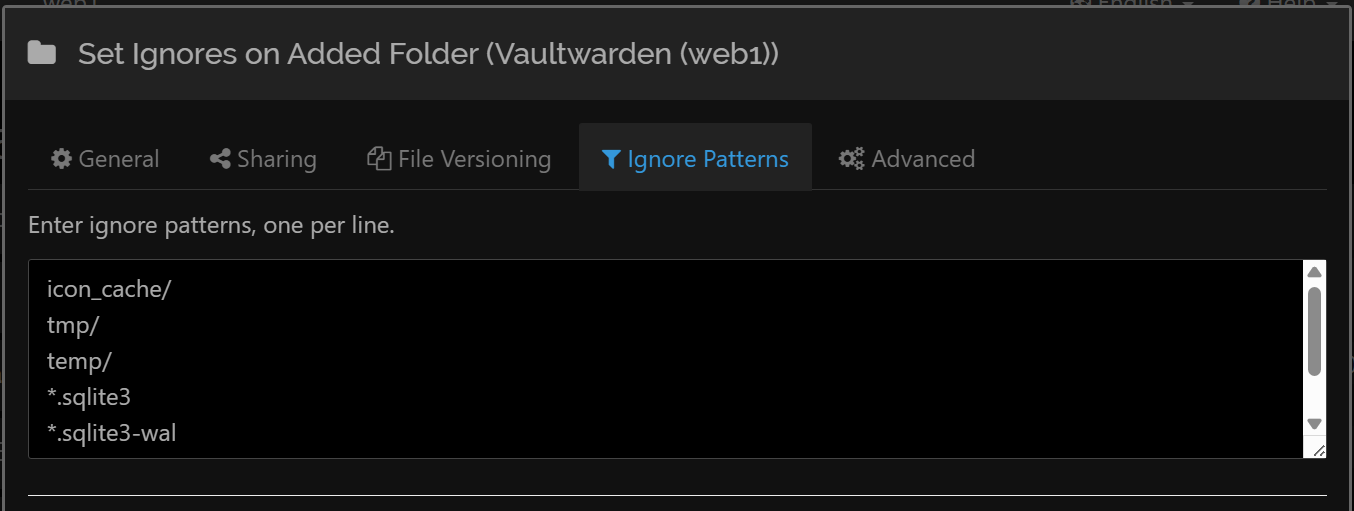

  • Go back to the Ignore Patterns tab (tick the box and once you complete the other tabs and go forward, copy paste this list):

icon_cache/
tmp/
temp/
*.sqlite3
*.sqlite3-wal
*.sqlite3-shm
*.log

Troubleshooting Syncthing folder addition

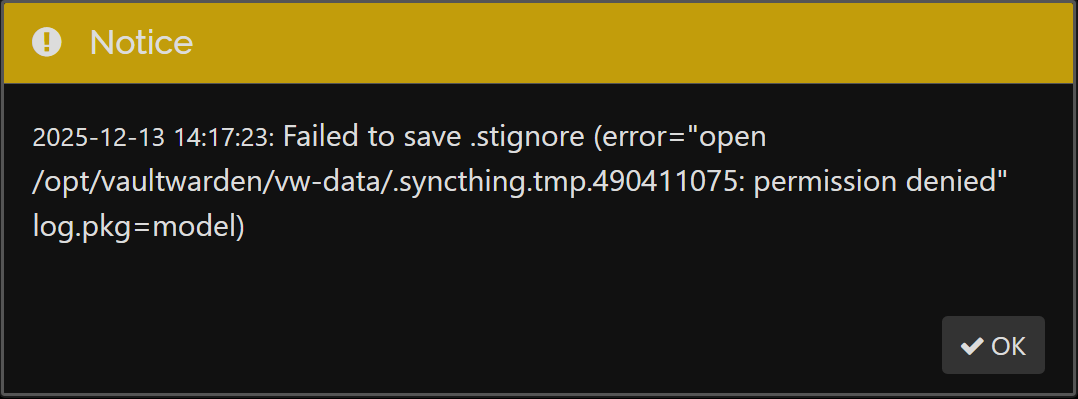

• In case you add the sync job and immediately get a permission error like the one below, it means your permissions on the /opt/vaultwarden folder are not correct:

• While in my case, the user is www-data, in your case, it is likely different. How can you find out? Let’s take a look:

 # List all running processes, filter 'syncthing' and filter out the command itself:
 sudo ps aux | grep syncthing | grep -v grep

• Then adjust the ‘sudo setfacl -R’ and ‘sudo setfacl -d’ commands above accordingly.
• For additional troubleshooting scenarios, you can check my previous guide for Syncthing that includes data loss situations and recovery options.

Add Syncthing on other web nodes

• SSH into your other web server nodes and set up the file permissions accordingly as we have done at the beginning of this Step.

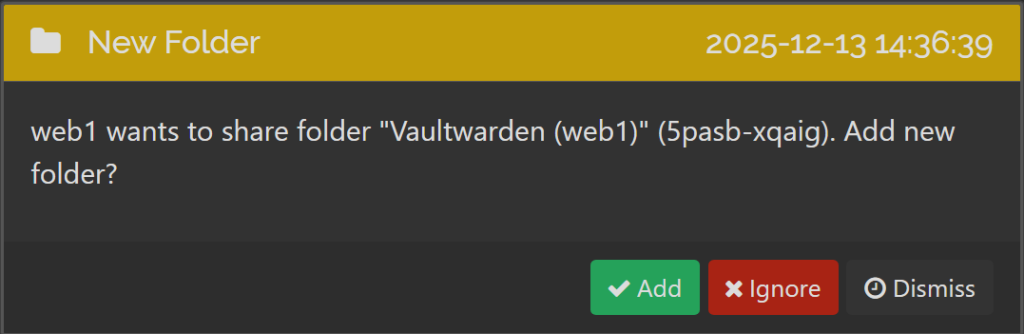

• Open Syncthing on each of your other web nodes and accept the invitation:

Set up the name, path, trash can, ignore permissions in the Advanced tab and then set up the file/folder patterns to be ignored, as we have done previously.

Go back to course overview: Deploy Vaultwarden in multi-site environment (Docker, OPNSense, Galera cluster, Nginx)
